As it is now, the "Roles" tab is a sub-tab of the "Permissions" tab, which doesn't make sense, as permissions and roles are two different things, even if they are related to each other, in some way.

It would make more sense to make both tabs of the "admin/people" page, instead of nesting one inside the other.

Comments

avpaderno’s picture

Issue summary: View changes

Inlined the screenshot.

Everett Zufelt’s picture

Issue tags: +Needs usability review

+100

Other than not being able to find Roles when I first went looking in D7, I now have to do an extra click to get to it.

I know that I mentioned this to @Bojhan once, and he had what seemed at the time to be a reasonable explanation for the change, so tagging.

klonos’s picture

I agree with this one too.

bryancasler’s picture

Same problems as #1

Everett Zufelt’s picture

Status: Active » Needs review
StatusFileSize
new12.99 KB

Status: Needs review » Needs work

The last submitted patch, move-roles-tab.patch, failed testing.

Everett Zufelt’s picture

Status: Needs work » Needs review
StatusFileSize
new13.3 KB

Forgot to change the menu item argument index... and that's what happens when you upload w/o testing :)

whitefluffy’s picture

Status: Needs review » Reviewed & tested by the community

I couldn't agree more with moving the Roles tab. The patch worked great for me, and the path "admin/people/permissions/roles" is nowhere to be found in the tree after patching. I'd say this is done.

Everett Zufelt’s picture

Status: Reviewed & tested by the community » Needs review

Still needs usability review.

Bojhan’s picture

I think this needs some testing, we have few to no data around how people use these screens. We also know that secondary navigation has serious visibility issues that might have contributed to this.

Everett Zufelt’s picture

avpaderno’s picture

The problem is that, when users reach admin/people because they are looking for the page where they can add a new role, they find a page that lists all the registered users with a tab for the permissions.
That roles are related to users/people is clear, but it's not clear in which way roles are related to permissions; I would say that roles have permissions, not that permissions have roles. It would make more sense if "Permissions" were a sub-tab of "Roles."

To make a comparison, it would be like if, in admin/content, the "Comments" tab would be a sub-tab of "Content," and "Books" would be the default tab.

xjm’s picture

Ah. I have another duplicate of this around somewhere. Edit: #884086: Roles are quite hidden at the moment; closing that one as a duplicate.

"Roles" is not logically a child of "permissions." I think the explanation in #11 is quite apt. Also, as David Rothstein pointed out in the previous issue, you can specify roles that can view a block on block administration, and it has nothing to do with permissions. Similarly, access control modules will configure access rules for roles independently of permissions.

Usablity testing is a good idea, but I feel strongly that this is a very good change.

xjm’s picture

Here is a reroll of Everett's patch for the new directory structure; no other changes.

xjm’s picture

StatusFileSize
new14.34 KB

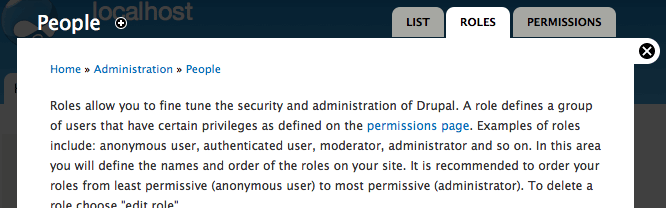

Screenshot of the UI with this patch applied:
Roles tab added between List and Permissions

dww’s picture

Status: Needs review » Reviewed & tested by the community
Issue tags: -Needs usability testing
  • Roles are not "secondary" to permissions as folks have already explained in this issue. Both UI-wise and technically, roles are not a subset/subtask of permissions. Most of the time, you need to create the roles first before it even makes sense to start trying to configure permissions. Even if secondary navigation was actually visible ;) that's still not the right place to put roles.
  • There's no downside to making 'Roles' more visible as a primary navigation link. It's not like 'People' is overflowing with primary links.
  • The patch in #15 is good, no visual problems upon review, bot is happy.
  • I can't imagine usability testing is going to contradict the assertion that people will be more able to properly configure permissions and roles if they can more obviously find the Roles page. I don't see why this needs formal usability testing.

Therefore, RTBC. ;)

dww’s picture

Assigned: Unassigned » dww
Status: Reviewed & tested by the community » Needs work

Bah, patch no longer applies (not that surprising). I'll do a quick re-roll. Stay tuned.

dww’s picture

Assigned: dww » Unassigned
Status: Needs work » Needs review
StatusFileSize
new13.33 KB
dww’s picture

Status: Needs review » Reviewed & tested by the community

Bot's still happy. I'm not RTBC'ing my own patch here... it's really just xjm's patch with new line numbers and such. ;)

Bojhan’s picture

Still needs testing, we don't just test for visibility of one setting in a test - otherwise we can just put it as a button on the front page :). One thing more important, might make another thing less important.

I am open to letting it - without testing, as this is something we can easily test/adjust after the fact and we can't afford to hold up tiny issues like these atm.

dries’s picture

I think this is a big improvement and would like to commit it. The patch doesn't apply though.

vortex:drupal-head dries$ git apply ../f.patch
error: core/modules/user/user.test: No such file or directory

The tests were moved to /core/modules/user/lib/Drupal/user/.

dries’s picture

Status: Reviewed & tested by the community » Needs work
Issue tags: +Needs usability testing

The last submitted patch, 1262812-19.move-roles-to-primary-tab.patch, failed testing.

David_Rothstein’s picture

The patch in #884086: Roles are quite hidden at the moment did:

List -> Permissions -> Roles

The screenshot above shows:

List -> Roles -> Permissions

Which order should they actually be in?

The first seems better to me since it puts the more frequently used page ahead of the less frequently used one (and also it's alphabetical :). However, the second is a little more logical in terms of the relationship between the tabs (users have roles, but roles have permissions).

Bojhan’s picture

Definitly the first, useage triumps conceptual relationship in this case.

dww’s picture

Assigned: Unassigned » dww
Status: Needs work » Needs review
StatusFileSize
new13.77 KB

user.test got PSR-0'ed, that's why this no longer applied. Fixed that.

Also, the menu stuff was borked b/c we had left the MENU_DEFAULT_LOCAL_TASK in there (which we no longer need) and the Roles tab had a weight -5. Fixed that, too. ;)

klausi’s picture

StatusFileSize
new14 KB

Rerolled because of #935062: Change role id to machine name.

This patch can also be found in the platform-role-1262812-klausi branch of the platform sandbox http://drupal.org/sandbox/sun/1255586

xjm’s picture

Issue tags: +Needs screenshots

Codewise the patch is a straightforward replacement of the old path, and the web test coverage for role CRUD still works. I applied the patch locally and confirmed that no instances of the old path were missed. It would be good to have screenshots in the issue for the UI change, which klausi should be adding right about now. :)

klausi’s picture

Issue tags: -Needs screenshots
StatusFileSize
new21.77 KB
new23.43 KB

I also tested the patch manually and it works as advertised.

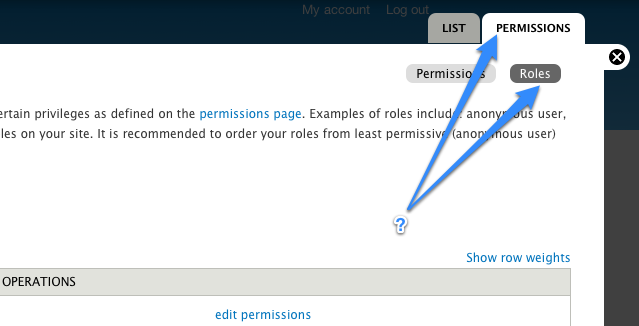

Screenshot before:

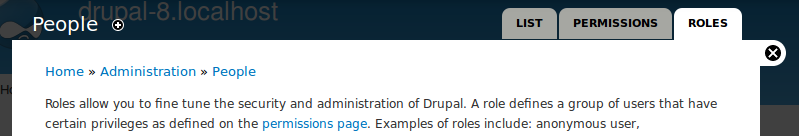

Screenshot after:

xjm’s picture

Status: Needs review » Reviewed & tested by the community

Thanks klausi!

dries’s picture

Asking for a re-test. I think the system tests have moved.

dries’s picture

#28: 1262812-role-tab-28.patch queued for re-testing.

Status: Reviewed & tested by the community » Needs work
Issue tags: +Needs usability testing

The last submitted patch, 1262812-role-tab-28.patch, failed testing.

klausi’s picture

Status: Needs work » Needs review
StatusFileSize
new14.1 KB

Rerolled.

git fetch origin
git fetch platform
git checkout platform-role-1262812-klausi
git merge origin/8.x
git diff origin/8.x > 1262812-role-tab-35.patch

I love you git. Truly.

Bojhan’s picture

Status: Needs review » Reviewed & tested by the community

lala, status

dww’s picture

Agreed with the RTBC. Patch is still good on visual inspection, bot is happy, and behold:

% cd drupal-8
% git pull
Current branch 8.x is up to date.
% find . | xargs egrep -i admin/people/permissions/roles | wc
      38     734    8016
% find . | xargs egrep -i admin/people/permissions/list | wc
       2       8     163
% wget http://drupal.org/files/1262812-role-tab-35.patch
...
% git apply 1262812-role-tab-35.patch
% mv 1262812-role-tab-35.patch ..
% find . | xargs egrep -i admin/people/permissions/roles | wc
       0       0       0
% find . | xargs egrep -i admin/people/permissions/list | wc
       0       0       0

That pretty much says it all. ;) And if Bojhan says it's RTBC, I don't think this needs any usability testing...

Cheers,
-Derek

dries’s picture

Status: Reviewed & tested by the community » Fixed

Committed to 8.x. Finally! Thanks for all the re-rolls along the way. :)

avpaderno’s picture

Version: 8.x-dev » 7.x-dev
Status: Fixed » Needs review
StatusFileSize
new7.42 KB

This is the patch for Drupal 7.

Bojhan’s picture

Status: Needs review » Closed (won't fix)

This is a won't fix, checked it with Angie.

However, please do make a contrib module or something for this :)

Tor Arne Thune’s picture

Version: 7.x-dev » 8.x-dev
Status: Closed (won't fix) » Fixed

Status: Fixed » Closed (fixed)

Automatically closed -- issue fixed for 2 weeks with no activity.

sun’s picture

Status: Closed (fixed) » Fixed
Issue tags: +API change

Changing menu router paths is definitely an API change, so at minimum, tagging this.

Not sure whether this needs a change notice. Perhaps we should have a generic/summarized one for all router paths that have changed between D7 and D8?

Status: Fixed » Closed (fixed)

Automatically closed -- issue fixed for 2 weeks with no activity.

lpalgarvio’s picture

just stumbled on this... was going to suggest it!
awesome =)

lpalgarvio’s picture

Issue summary: View changes

Fixed the URL for the screenshot.
