Problem/Motivation

The GD toolkit does not correctly handle gamma when resizing images, because of a limitation of the GD library.

Proposed resolution

As explained here:
http://www.4p8.com/eric.brasseur/gamma.html
A workaround is to alter image gamma to achieve a linear scale before resizing, and change it back to original after having resized.

The patch is quite simple, it just calls imagegammacorrect before and after imagecopyresampled.

Result comparison

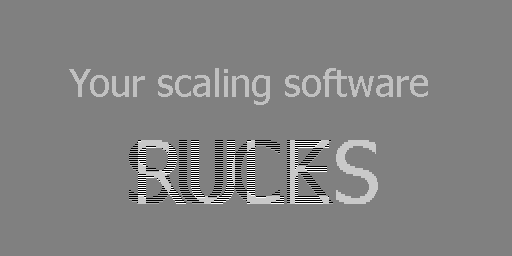

Using this original image for example:

This is what Drupal currently gives after resizing and cropping to 75x75px:

and after patching:

The second scaled image is visually closer to the unscaled image.

Steps to reproduce

  1. Use the image in the Issue Summary
  2. Make a image style, resize 75x75px
  3. Change the article content type to use the new image style
  4. Upload the image in the issue summary

Proposed resolution

Remaining tasks

Update the patch
Add a test
Review
Commit

User interface changes

API changes

Data model changes

Release notes snippet

CommentFileSizeAuthor
#50 interdiff_49-50.txt1019 bytesvsujeetkumar
#50 1480428-50.patch1.06 KBvsujeetkumar
#49 1480428-49.patch1.06 KBvsujeetkumar
#44 1480428-44.patch1.06 KBtanuj.
#25 gd_image_toolkit_does-1480428-25.patch1.09 KBl0ke
#23 gd_image_toolkit_does-1480428-23.patch871 bytesamitgoyal
#20 gd_image_toolkit_does-1480428-20.patch876 bytesthoth
#18 gd_image_toolkit_does-1480428-18.patch872 bytesthoth
#16 drupal-GD-image-toolkit-incorrect-resizing-1480428-16.patch883 bytesthoth
#4 drupal-image-gammacorrect-1480428.patch757 bytesSeeSchloss
original.png4.1 KBSeeSchloss
before-patch.png3.93 KBSeeSchloss
after-patch.png4.89 KBSeeSchloss
image-gammacorrect.patch737 bytesSeeSchloss
