I'm trying to position 3 elements in a container. Here's the HTML and relevant Zen Grids SASS.

HTML

<div id="main">
  <div id="preface">...</div>
  <div id="preface">...</div>
  <aside class="sidebars">
      <section class="region-sidebar-first">...</div>
  </aside>
</div>

SASS

#preface,
#content,
.region-sidebar-first {
  @include zen-grid-item-base();
}

#main {
  @include zen-grid-container();
}

#preface {
  @include zen-grid-item(9, 1);
}

#content {
  @include zen-clear(left);
  @include zen-grid-item(9, 1);
}

.region-sidebar-first {
  @include zen-grid-item(3, 1, right);
}

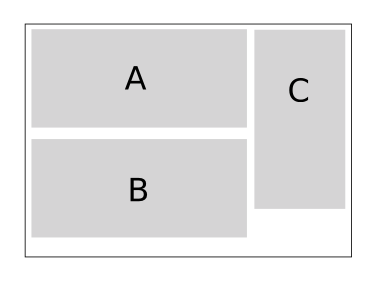

Expected result

  • A being #preface
  • B being #content
  • C being .region-sidebar-first

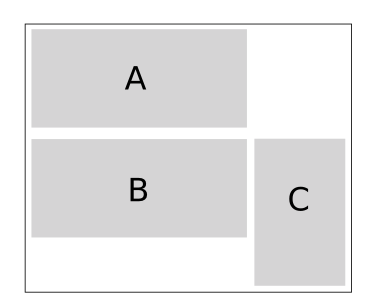

Actual result


I thought this was going to be a simple layout to achieve with Zen Grids... am I doing it wrong?

CommentFileSizeAuthor
zengrids-actual.png3.84 KBcossovich
zengrids-expected.png3.84 KBcossovich

Comments

watergate’s picture

watergate commented

I think you need to wrap A and B, and position the wrapping element to C. Within the wrapper you can position A and B relative to each other.

cossovich’s picture

cossovich commented

I kind of wanted to avoid wrapping elements in markup just to achieve the layout but perhaps I'm asking too much of my lovely Zen Grids.

@MrWatergate, Thanks for the tip.

greg.b’s picture

greg.b commented

You cant have 2 divs with the same id's, maybe that is causing confusion?

...
...
watergate’s picture

watergate commented

I think it's just a small copy/paste flaw and as far as I know doesn't change the question. However, the HTML most probably should be:

<div id="main">
  <div id="preface">...</div>
  <div id="content">...</div>
  <aside class="sidebars">
      <section class="region-sidebar-first">...</div>
  </aside>
</div>
johnalbin’s picture

johnalbin
they/他
Primary language English
Location Taipei, Taiwan
commented
Status: Active » Fixed

zen-clear() starts a new row. which means adjacent siblings of that item will also be on that same row.

Status: Fixed » Closed (fixed)

Automatically closed -- issue fixed for 2 weeks with no activity.
