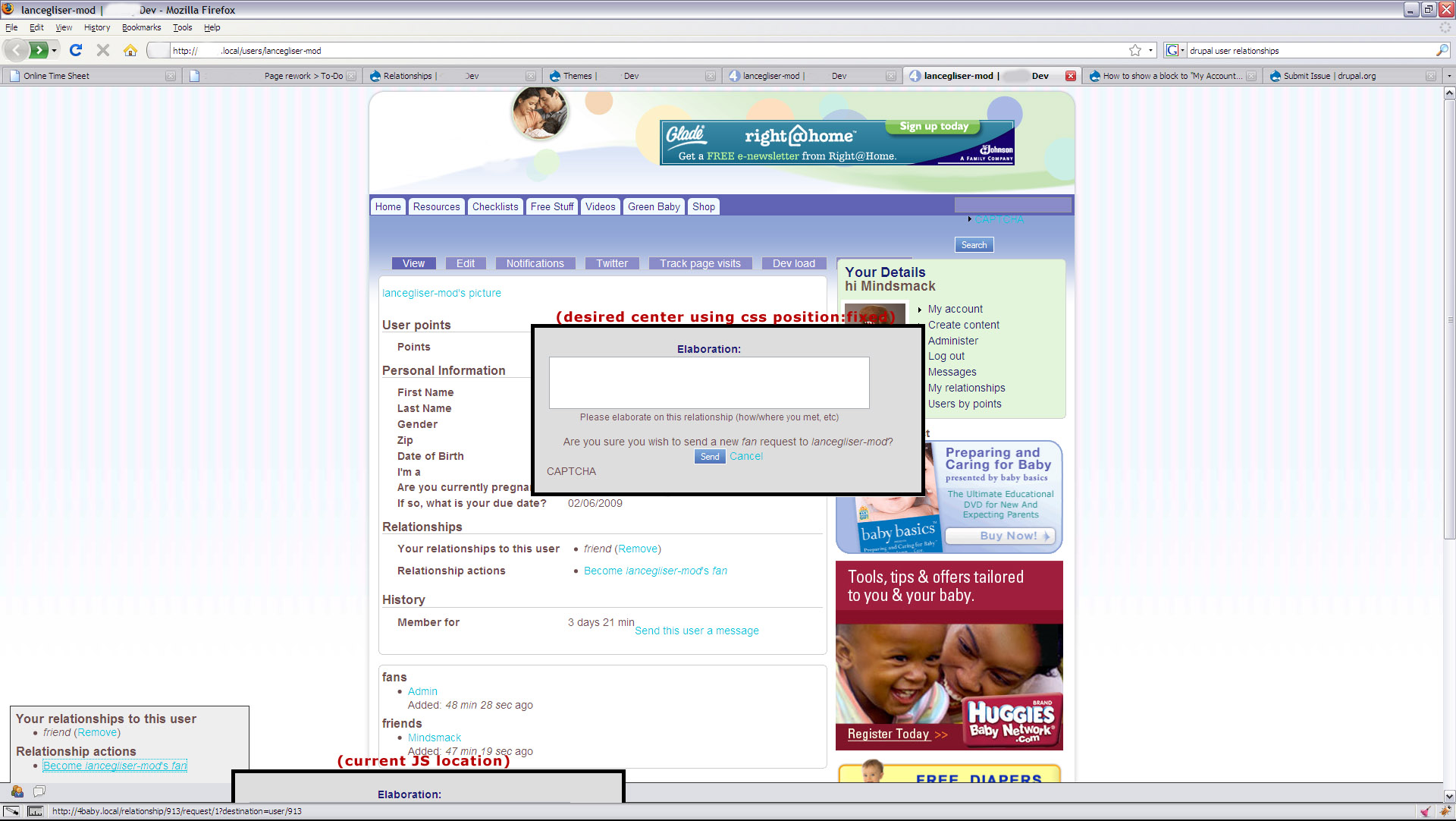

Controls for Elaboration's area on the screen

I took a look at the patch, it's still setting it below the link. Which is great pretty impressive visually, if you're not using a side zone.
But, I think there will be more people like myself though that bury it to save screen space.

I'm not sure how to patch, I'm somewhat new here but I'll see what I can learn.
There's choice but to use inline css to get it to the center of someone's screen, we just need a settings option built in for: Below or Center.
Let me dig out the centering JS for this...

user_relationships
- user_relationships_ui
- - user_relationships_ui.js

// Javascript for user_relationships_ui.module

// Creating our own namespace for the module
Drupal.user_relationships_ui = {};

if (Drupal.jsEnabled) {
  $(document).ready(function() {
    // Any links that we have created in the ui module are
    // Given a click handler so you can display the popup correctly
    $('a.user_relationships_popup_link').click(function(e) {
      var buttoncode = e.which ? e.which : e.button; // msie specific checks does not support e.which
			// If position is fixed, allow for %'s.
			position = Drupal.settings.user_relationships_ui.position.position;
			left = Drupal.settings.user_relationships_ui.position.left;
			top = Drupal.settings.user_relationships_ui.position.top;

			if(position == "fixed") {
			  // If left is defined in a % (.5) calculate left requirement
			  if(left <= 1) {
			    // Window width * desired - UI width
			    left = Math.round(($(window).width()*left) - ($("#user_relationships_popup_form").width()/2));
			  }
			  // If top is define in a % (.33) calculate top requirement
			  if(top <= 1) {
			    // Window height * desired - UI height (which is an unknown)
			    top = Math.round(($(window).height()*top) - ($("#user_relationships_popup_form").height()/2));
			  }
			} else {
				left = (e.pageX ? e.pageX : e.clientX) + Number(left); // msie specific checks does not support e.page
	      top = (e.pageY ? e.pageY : e.clientY) + Number(top); // msie specific checks does not support e.page
			}
      var href = $(this).attr('href'); // Where we send the ajax request.
      Drupal.user_relationships_ui.showForm(href, position, left, top);
      return false;
    });
  });
}

/**
 * Function to display the pertinent form for the user
 *
 * @param href
 *      Ajax url where we will retrieve the form
 * @param pageX
 *      Left value for the event
 * @param pageY
 *      Top value for the event
 */
Drupal.user_relationships_ui.showForm = function(href, position, left, top) {
  // Making sure that any currently open popups will be hidden.
  Drupal.user_relationships_ui.hidePopup();
  // Putting the animation into this

  $('#user_relationships_popup_form')
    .css({top: top + 'px', left: left + 'px', position: position})
    .html(Drupal.user_relationships_ui.loadingAnimation())
    .slideDown();
  // Adding ajax to the href because we need to determine between ajax and regular
  if (href.indexOf('?') == -1) {
    href += '?';
  };
  href += '&ajax=1';
  // Making the ajax request to the server to retrieve the form.
  $.get(href, function(result) {
    $('#user_relationships_popup_form').html(result).slideDown();
    // Making sure the cancel link on each form in the popup closes the popup.
    $('#user_relationships_popup_form a').click(function() {
      Drupal.user_relationships_ui.hidePopup();
      return false;
    });
  });
};

/**
 * Function used to return the html that is used to build the.
 * Loading animation when a form is requested by the user.
 */
Drupal.user_relationships_ui.loadingAnimation = function() {
  var html = '<div>';
  html += '<div style="text-align: center; font-weight: bold;">Form Loading</div>';
  html += '<img src="' + Drupal.settings.user_relationships_ui['loadingimage'] + '" border="0" height="20" width="200" />';
  html += '</div>';
  return html;
}

/**
 * Helper function to hide the popup form
 */
Drupal.user_relationships_ui.hidePopup = function() {
  $('#user_relationships_popup_form').slideUp();
}

user_relationships
- user_relationships_ui
- - user_relationships_ui.admin.inc

+ Line 53+:
$form['general']['user_relationships_position'] = array(
  '#type' => 'select',
  '#title' => t('Elaboration form\'s css position'),
  '#default_value' => variable_get('user_relationships_position', 'fixed'),
  '#options' => array(
    'static' => t('Static'),
    'fixed' => t('Fixed'),
  ),
  '#description' => t('Sets the css position property of the elaboration\'s UI.'),
);
$form['general']['user_relationships_left'] = array(
  '#type' => 'textfield',
  '#title' => t('Elaboration form\'s css left value'),
  '#default_value' => variable_get('user_relationships_left', ''),
  '#size' => 4,
  '#description' => t('Sets the css left property of the elaboratin\'s UI. You may enter a distance in pixels, or as a % using a value 1 or less. Relative positioning requires a fixed position.'),
);
$form['general']['user_relationships_top'] = array(
  '#type' => 'textfield',
  '#title' => t('Elaboration form\'s css top value'),
  '#default_value'  => variable_get('user_relationships_top', ''),
  '#size' => 4,
  '#description' => t('Sets the css top property of the elaboratin\'s UI. You may enter a distance in pixels, or as a % using a value 1 or less. Relative positioning requires a fixed position.'),
);

user_relationships
- user_relationships_ui
- - user_relationships_ui.module

+ Line 311:  $settings['user_relationships_ui']['position'] = array('position' => variable_get('user_relationships_position', NULL), 'left' => variable_get('user_relationships_left', NULL), 'top' => variable_get('user_relationships_top', NULL));

Alright Alex. I've gotten a working version on my local computer, the code changes needed are listed for you.
Users can change between absolute layout, related to the mouse. Or the fixed layout. Both accept left and top parameters to move relative to the starting point.
I've had to just paste in an entire new JS page, lots of changes.

But, one thing does remain and it's a design choice how we handle it.
In trying to do a % height for the fixed version, the height of the window is an unknown variable at the time it's fired.
We could leave it, and let people adjust on their own (measure what they produce and set that as a negative amount in the admin position top).
If that's not alright, we'll have to find a way to pass a standard height.
Tell me what you want to do, and I'll see about learning how to hand you a patch of this.

I've been assigned to other projects for a while now. The above code works, but I haven't had time to make a patch.
I'm handing it over to whoever wants to run with it.
