ARCHIVE: Drupal 4.6 vs. Drupal 4.7 Form API Flowcharts
Last modified: April 15, 2009 - 00:39
The following shows a comparison in the way forms were done pre-4.7 and how they are done in Drupal 4.7. Attached below is a Dia file containing an editable version of the diagrams.
See the print-friendly version if images are being hidden by menus.

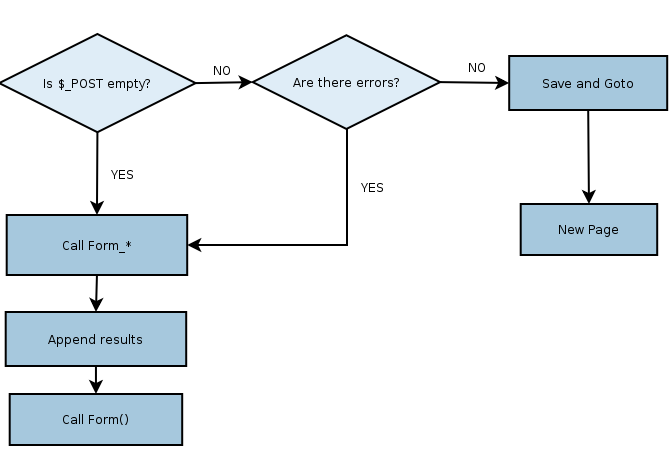

Drupal Pre-4.7 Form API
Example:
<?php
function example_menu($may_cache) {
$items = array();
if ($may_cache) {
$items[] = array(
'path' => 'example_page',
'callback' => 'example_page',
'title' => 'example page',
'access' => TRUE,
);
}
return $items;
}
function example_page() {
$op = isset($_POST['op']) ? $_POST['op'] : '';
$edit = isset($_POST['edit']) ? $_POST['edit'] : '';
if ($op == t('Submit')) {
if (!($edit['field_1'] >= 1 && $edit['field_1'] <= 2)) {
form_set_error('field_1', t('Enter a value between 1 and 2'));
}
if (!form_get_errors()) {
db_query('INSERT INTO {example} (data) VALUES (%d)', $edit['field_1']);
drupal_goto();
}
}
$form = form_textfield(t('first textfield'), 'field_1',
isset($edit['field_1']) ? $edit['field_1'] : 1, 60, 255,
t('Enter a value between 1 and 2 ')
);
$form .= form_submit(t('Submit'));
return form($form);
}

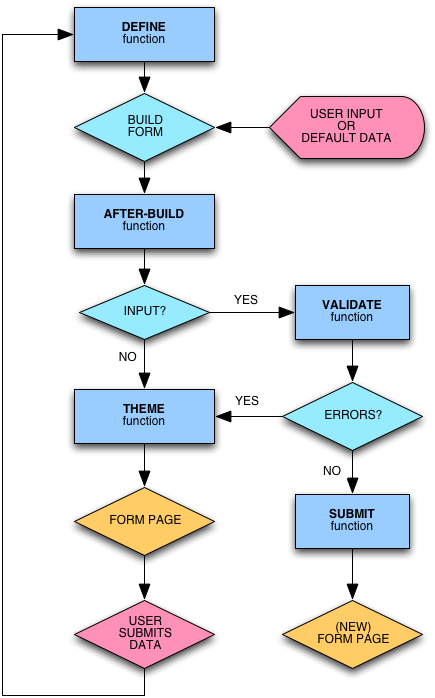

?>Drupal 4.7 Form API
Example:
<?php
function example_menu($may_cache) {
$items = array();
if ($may_cache) {
$items[] = array(
'path' => 'example_page',
'callback' => 'example_page',
'title' => 'example page',
'access' => TRUE,
);
}
return $items;
}
function example_page() {
$form['field_1'] = array(
'#type' => 'textfield',
'#default_value' => 1,
'#title' => 'first textfield',
'#description' => t('Enter a value between 1 and 2'),
);
$form['field_2'] = array(
'#type' => 'submit',
'#value' => t('Submit')
);
drupal_get_form('example_form_id', $form);
}
function example_form_id_validate($form_id, $form_values) {
if (!($form_values['field_1'] >= 1 && $form_values['field_1'] <= 2)) {
form_set_error('field_1', t('Enter a value between 1 and 2'));
}
}
function example_form_id_submit($form_id, $form_values) {
db_query('INSERT INTO {example} (data) VALUES (%d)', $form_values['field_1']);
drupal_goto();
}
?>
