Zoom to cluster area, hi patched and merged several suggestions from here [#155104]

Would it be possible have gmap zoom in on the area of clustered markers instead of showing a text list of the markers available?

For example, if a user was looking at a worldview map where five markers were in a cluster over Seattle, instead of bringing up a list of the items in the cluster when clicked, gmap could autozoom into the area (Downtown Seattle for example) showing the 5 markers.

Comment	File	Size	Author
#9	Clusterer_PopUp_Fix.txt	2.19 KB	oranki42
#8	invisible.jpg	90 KB	rares
#8	better zoom.jpg	71.17 KB	rares
#8	still clustered.jpg	31.13 KB	rares

Support from Acquia helps fund testing for Drupal Acquia logo

Comments

Comment #1

Scott Falconer CreditAttribution: Scott Falconer commented 7 July 2007 at 00:58

Version:

6.x-1.x-dev

» 5.x-1.x-dev

I can put up a cash bounty for this feature...anyone interested give me an idea on how long you'd think it take and we can figure out a price.

Comment #2

ray007 CreditAttribution: ray007 commented 8 July 2007 at 08:19

The popup-action for cluster markers is hardcoded in the Clusterer.js file (if we're talking about Jef's clusterer).
Maybe not trivial, but should be doable in 2 days work.

Comment #3

Scott Falconer CreditAttribution: Scott Falconer commented 9 July 2007 at 02:24

I was able to modify the Clusterer.PopUp function in clusterer2.js (based on another modification found here to get it to work as I needed. Thanks for pointing me in the right direction.

Works in OSX in Firefox and Safari. Haven't had a chance to test in IE.

Clusterer.PopUp = function ( cluster )
    {
	var clusterer = cluster.clusterer;

	if (clusterer.boundsDisplay)
		clusterer.map.removeOverlay(clusterer.boundsDisplay);

	var bounds = new GLatLngBounds();
	for (var k in cluster.markers)
		bounds.extend(cluster.markers[k].getPoint());

	var sw = bounds.getSouthWest();
	var ne = bounds.getNorthEast();
	var rect = [ sw,
		     new GLatLng(sw.lat(), ne.lng()),
		     ne,
		     new GLatLng(ne.lat(), sw.lng()),
                     sw
		   ];

	clusterer.boundsDisplay = new GPolyline(rect, "#FFFF33", 2, 0.8);
	clusterer.map.addOverlay(clusterer.boundsDisplay);
	clusterer.boundsDisplayOwner = cluster;


	var center = bounds.getCenter();
	var zoom = clusterer.map.getBoundsZoomLevel(bounds);

    clusterer.map.setCenter(new GLatLng(+center.lat(),+center.lng()),+zoom);

};

Comment #4

ray007 CreditAttribution: ray007 commented 9 July 2007 at 07:11

Thanks for sharing this code.

Changing the clusterer2.js script is of course the easy way, if you want to change the popup-action for cluster markers generally.
Maybe we should make a contrib-directory to save such hacks?

Making a configurable way to have different cluster-actions on demand is a bit more involved, but maybe that's not really needed.

Comment #5

marcoBauli CreditAttribution: marcoBauli commented 27 June 2008 at 10:28

that works sweet, thanks! :)

Comment #6

bdragon CreditAttribution: bdragon commented 13 February 2009 at 00:17

Status:

Active

» Fixed

Fixed as part of my work today on marker managers.

http://drupal.org/cvs?commit=171293
http://drupal.org/cvs?commit=171294

Comment #7

27 February 2009 at 00:20

Status:

Fixed

» Closed (fixed)

Automatically closed -- issue fixed for 2 weeks with no activity.

Comment #8

rares CreditAttribution: rares commented 25 March 2009 at 21:13

Status:

Closed (fixed)

» Active

File	Size
still clustered.jpg	31.13 KB
better zoom.jpg	71.17 KB
invisible.jpg	90 KB

@bdragon, thanks for the amazing patch for this.
I have an issues to report with new implementation. If you think this should be a new issue (or two new issues), just mark this closed and I can post new issues. Just thought that there's already way too many issues in the queue.

I have: /* $Id: clusterer_marker.js,v 1.4 2009/02/12 23:45:23 bdragon Exp $ */
and am using Activate on 3 or more markers and Cluster on 3 or more markers.

The following behavior applies when I use the zoom-in behavior for clusterer.

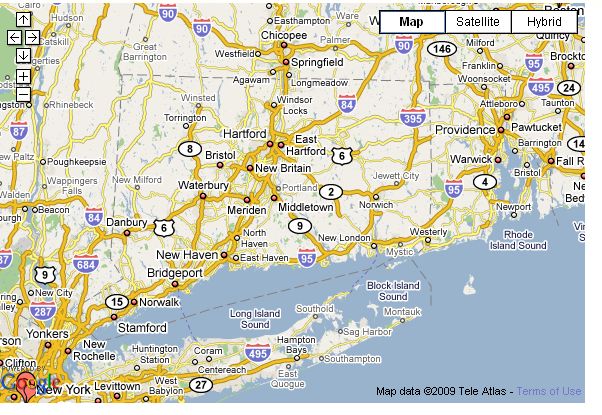

- There are some zoom thresholds and marker layouts that make it difficult to see the markers when zoomed in. For instance, I have a cluster for New York and Boston, and when I click on it, I can't see Boston, because it is right in the top-right corner. See invisible.jpg

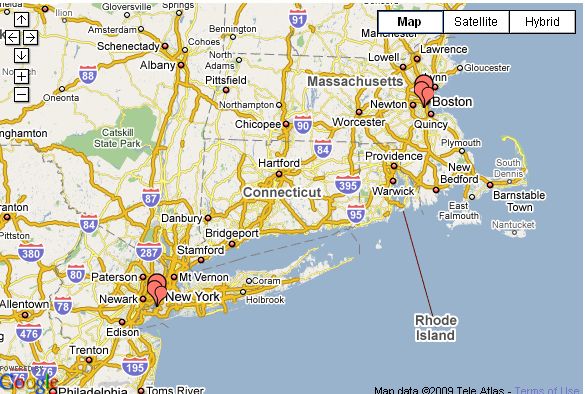

by changing line 85, the markers are easier to see.

var zoom = cluster.clusterer.map.getBoundsZoomLevel(bounds);
TO
var zoom = cluster.clusterer.map.getBoundsZoomLevel(bounds) - 1;

The second issue is that the markers that were in the initial cluster still have a cluster icon, and still behave as clusters. If I click on one of them, I get a zoom in to the street level for that single marker (see still clustered.jpg)

Comment #9

oranki42 CreditAttribution: oranki42 commented 21 June 2009 at 14:23

Title:	Zoom to cluster area	» Zoom to cluster area, hi patched and merged several suggestions from here
Version:	5.x-1.x-dev	» 6.x-1.0
Component:	User interface	» Miscellaneous

File	Size
Clusterer_PopUp_Fix.txt	2.19 KB

Hi,

I've written a patch for clusterer2.js with a new version of Clusterer.PopUp = function ( cluster ); Basically if you click on a cluster it now zooms until zoomlevel 17 is reached and then it starts listing the markers below. Some one would still need to add tabbing to it. But hey now it works al lot nicer. Together with the fix for the clusterer_marker.js to put the text not/the title in the popup it should work like a dream for most default drupal sites. Perhaps someone can create a patch or what you dev-guy's do?
