Fetch Relation by Endpoints in rules

I'm having a similar problem and I'm getting this message in the error log:

2.822 ms Evaluating the action entity_delete. [edit]
7.161 ms There is no information about how to delete entities of type relation.

I guess you have to use the Views Bulk Operations-module. Will give it a try.

UPDATE: OK, I added a field to the array in relation_entity_info()
'deletion callback' => 'relation_delete'

Now I can delete using an action.

Erik Starck

Yes, that's what I figured too and committed yesterday.

relation action delete an entity of type relation just works.

That's good but now I just upgraded to beta2 and my old actions stopped working. In fact, Drupal crashes.

The web server log says:

Call to undefined function ctools_export_crud_load_multiple() in /var/www/drupal/sites/all/modules/relation/relation.module on line 397, referer: [...]/node/49/edit?destination=admin/content

I get the same error from the new block used to edit relations just when I select the relation type.

The version of Chaos Tools I have installed is the latest RC.

(Sorry if this is getting slightly OT.)

Update: that function is in the latest dev version of Chaos Tools.

Update2: Yupp, installing latest dev of ctools fixed the problem.

drush dl ctools-7.x-1.x-dev

BR Erik

I am changing the project page to warn you that you need ctools dev for this. Cant help they didnt release for so long.

That's a feature request there, but one that I am not inclined to do. Use Views + VBO for that one.

You can use user->relation or node->relation relationship in views then add rid field and hide it. Then in rules list should be current-item:rid but there is not.

relation_query('user', $uid)
  ->related('node', $nid)
  ->execute()

will return the ids of all the relation between those two entities. You can restrict it to a relation type with

  ->entityCondition('bundle', $relation_type)

you can also add an index to the relation_query() or related() call if you need a specific direction. see http://drupalcode.org/project/relation.git/blob/refs/heads/7.x-1.x:/rela... for docs

I am sorry to reopen the issue. It seems that everyone is happy with the solution, but I just can't figure it out. Drupal.org is where all development takes place and I don't really hope to find a solution elsewhere.

I' m a mere site builder, I know little about PHP and I am very fascinated with all the fun stuff that can be done using Relation and Rules module. Sorry I don't know what to do with the code that closed the issue. Ok, I'm trying to configure VBO view. Instead of one single relation to be deleted I get a list of all relations of this type. Once arguments don't get passed to the VBO, it looks that I need to use the rules to select one particular relation.

Could anyone please please take a few minutes to explain how to do it? The idea is to delete a relation between a node that is being unflagged and and a user who unflags it. I believe there are many site builders that could do with this advise.
Thank you so much for the understanding!

It is not about deleting a relation .. It is about querying relations using endpoints, and it is still not working in latest dev, the problem is that there is no "query callback" for the property endpoints.

naught101 made a nice starting point in #12, so I tried to make things work with this initial patch.

It worked for my use case and I didn't make a lot of testing for other ones.

* - queryable: (optional) Whether a property is queryable with
* EntityFieldQuery. Defaults to TRUE if a 'schema field' is specified, or
* if the deprecated 'query callback' is set to
* 'entity_metadata_field_query'. Otherwise it defaults to FALSE.
* - query callback: (deprecated) A callback for querying for entities
* having the given property value. See entity_property_query().
* Generally, properties should be queryable via EntityFieldQuery. If
* that is the case, just set 'queryable' to TRUE.

This is from hook_entity_property_info documentation.

Hi,

I'm a bit lost with the whole thing. I'm also trying to fetch a relation id in order to delete the entity, but I can't. My relations link users to some nodes, and I have relation rc4.
When I implement a "rid" (relation id) field in views, it returns 0 (or null I guess). Same with a relation type field...

How did things evolved since january? How could I manage to get this ID? Would the dev version be a better choice?

Thank you very much!

Michael

I'm also a non programmer. I tried #12 and #16, without any success.
I wish to fetch a relation by the endpoints, having the endpoint-list.
Exactly tha same stated in issue How can I get a relation by the endpoints using the “Fetch entity by property” action in rules? by ptmkenny.
Have anyone succeed in it?
Thank you very much

Even if it is deprecated patch #16 is working fine.

@miromachi

Here is what to do:
1. Create a list of any entiy
2. Put your endpoints in the list
3. Use the endpoint list to fetch the relation

Here is a demo rule export that works with patch #16

{ "rules_fetch_relation_with_endpoints_demo" : {
    "LABEL" : "fetch_relation_with_endpoints_demo",
    "PLUGIN" : "rule",
    "OWNER" : "rules",
    "REQUIRES" : [ "rules", "devel" ],
    "DO" : [
      { "entity_fetch" : {
          "USING" : { "type" : "eventday", "id" : "1" },
          "PROVIDE" : { "entity_fetched" : { "endpoint_1" : "Endpoint 1" } }
        }
      },
      { "entity_fetch" : {
          "USING" : { "type" : "node", "id" : "350" },
          "PROVIDE" : { "entity_fetched" : { "endpoint_2" : "Endpoint 2" } }
        }
      },
      { "variable_add" : {
          "USING" : { "type" : "list\u003Centity\u003E", "value" : [ "" ] },
          "PROVIDE" : { "variable_added" : { "endpoints" : "Endpoints" } }
        }
      },
      { "list_add" : { "list" : [ "endpoints" ], "item" : [ "endpoint-1" ] } },
      { "list_add" : { "list" : [ "endpoints" ], "item" : [ "endpoint-2" ] } },
      { "entity_query" : {
          "USING" : {
            "type" : "relation",
            "property" : "endpoints",
            "value" : [ "endpoints" ]
          },
          "PROVIDE" : { "entity_fetched" : { "realtion_fetched" : "Relation Fetched" } }
        }
      },
      { "devel_debug" : { "value" : [ "realtion-fetched" ] } }
    ]
  }
}

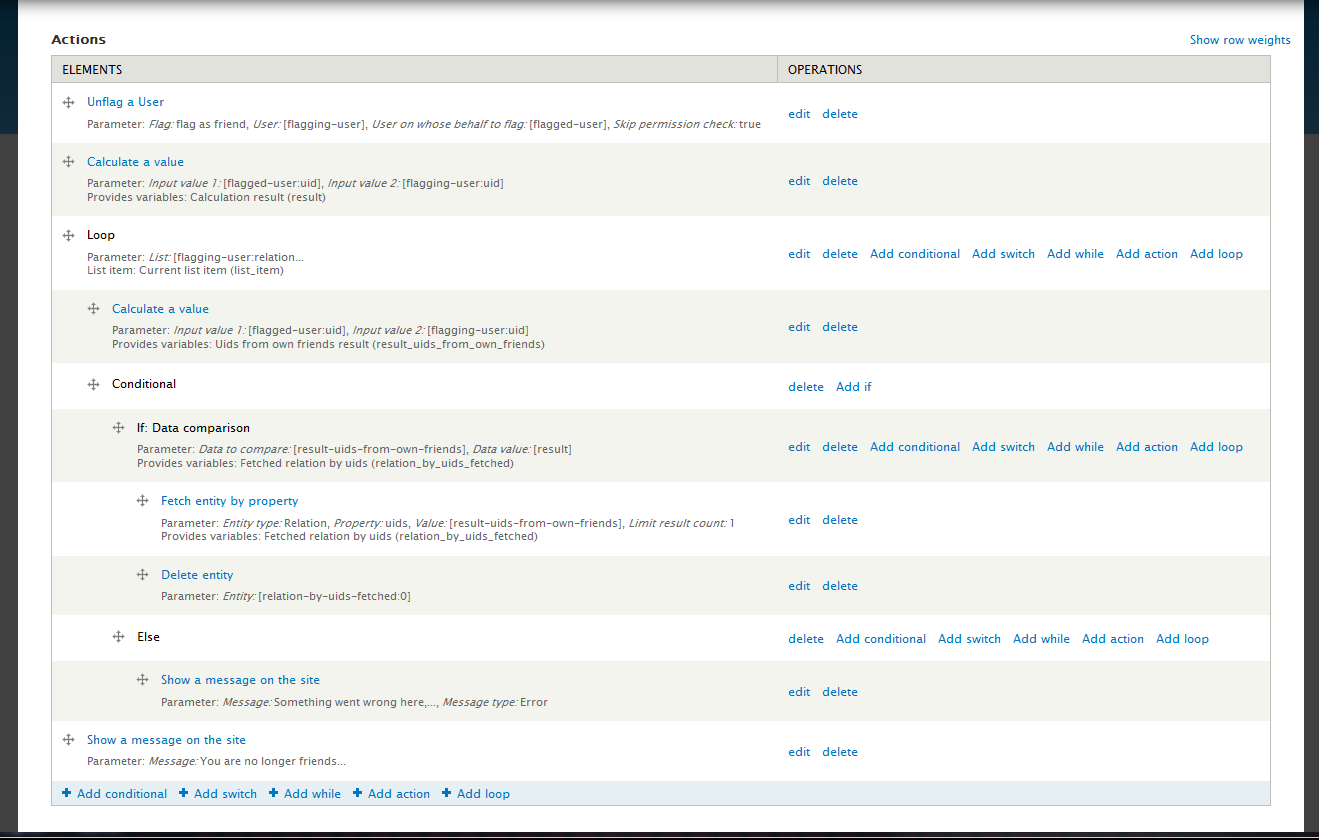

And a screenshot of the rule:

Hope this helps.

@marcusx That's it! Thanks so much! It works now. Your 3 steps workflow in #21 is working for me. Thanks

Working with "fetch relation by endpoints" action in rules, I found out that it fetches all the relations for the endpoints in the chosen list, even if the list contains only one endpoint.

In this (sub)case, the action fetches all relations pointing to the selected endpoint, whatever the other endpoint.

I believe this behavior is very similar to the action fetch entity by property used with entityreference module. I previously used that one to fetch all nodes referencing a chosen node.

Since I wasn't aware of this ability of the relation module, and indeed I thought only entityreference module had it, I write it here, for others to know.

I've tried to implement this functionality without the deprecated query_callback by using hook_entity_query_alter similar to the patch for Commerce in #1345890: Allow to query order by states from Rules.

Here it is.

Hi there. I've tried your patch in #24 and it works.
The only point I got relation reporting a "field validation failed" error. Which doesn't mess up with my rule, nor with the expected behavior.
Rules log says nothing.
Watchdog just says
error relation Field validation failed.
Sorry I don't know how to help better.
Anybody else?

Edit: my field validation error was totally unrelated to this issue.

This needs tests

I manually patched #24 into 7.x-1.0-rc4 and it worked for me without any messages in watchdog. Thank you so much for this as I was going crazy trying to get this to work.

With regard to the 'fetched' state of the relation:
It appears that "fetch relation by endpoints" only makes the rid available, not the custom fields of the relation through 'entity has field'.
Only after another 'fetch entity by id' then 'entity has field' will show the custom field.
Is this normal behavior or a bug?

"Fetch entity by property" returns a list of entities, not one entity. If you add a loop over the list, you can add an 'entity has field' check on the current list item in the loop.

#24 works great with the latest 7.x-1.x-dev.

Using 7.x-1.0-rc5 nor patch #16 neither #24 worked for me, following method described in #21.
Still unable to fetch relations using one endpoint.
Some advices ?

Patching using patch #24 ( git apply relation-query_endpoints-1302788-24.patch ) gave me :
relation-query_endpoints-1302788-24.patch:13: new blank line at EOF.
+
warning: 1 line adds whitespace errors.

Do you have explanations ?

Thanks !!

EDIT : #16 worked, but not #24. First fail was due to PHP cache unrefreshed. So my fault :(

Re-roll of the patch in #24

I've recently updated my relation 7.x-1.0-rc4 and rules 7.x-2.6 modules to the latests (relation 7.x-1.0 and rules 7.x-2.9).
I've reapplyed the patch in #33.

patch -p1 < relation-query_endpoints-1302788-33.patch
patching file relation.module
Hunk #2 succeeded at 1012 with fuzz 2 (offset 16 lines).

I'm writing here to inform that my rules fire correctly and the website is working well.
Anyway the patch has some fuzz and offset against latest relation module.

Thanks once again for the patch!

Works perfectly for me as well.

Applied patch #33 to Relation 7.x-1.0. And followed steps below from #21 to fetch the relation:
1. Create a list of any entiy
2. Put your endpoints in the list
3. Use the endpoint list to fetch the relation.

Happily reporting that relation is fetched successfully and fields that are attached to the relation are accessible within the rule.
BIG thank you for the patch!

Hello!!!

I am very happy because thanks to this issues I solved the following problem:

expects parameter 1 to be array, null given en rules_action_entity_query

Thanks oksana-c to simplify the soluction, thanks Paul B for share with us the patch.

Now, I can finish the new rules.
Regards, Javier.

:)

Thank you guys!Your patch #33 solved my problem
PS:don't forget to clear cache after patch!

I still think this needs tests. However here is a reroll, current patch did not apply anymore.

Why it is not using the related() method of RelationQuery?
