Distance filtering from another geofield

Would we handle this as a special type of relationship instead?

You create a relationship from one set of geofields (your base set, might even be 1), to another set of geofields using a "proximity" relationship. I haven't thought this through but I think using a relationship would be the right way to do it.

In the meantime, if others are looking for this an easy hook into Views should do the trick. Not an expert with Views so might be a better hook/functions to use, but at least this works!

Here are the steps:

1. Create a view for the content type you want to display in the block.
2. Add Geofield - proximity to the Sort Criteria section. Set the Source of Origin Point to Manually Enter Point. Then entered "0" for Latitude and Longitude.

3. Add Geofield - proximity to the Fields section. Set the Source of Origin Point to Manually Enter Point. Then entered "0" for Latitude and Longitude.

4. Your View should now look something like this:

5. If what will be the current node is included in the results being returned by the View, set the Pager to have an offset of 1 so it skips the first result (since the current node will always be closest to itself!)

6. Now when you preview the results you'll see the distances and sorting relative to the 0,0 values entered for latitude and longitude. Not what we wanted, so next we jump into the code.

7. Add the code below to a custom module you've created. Be sure to replace YOUR_MODULE with your module's name, the VIEW_NAME with your view's machine name, and the FIELD_NAME, VIEW_FIELD_NAME and SORT_CRITERIA with the ones from your View.


   /**
    * Implements hook_views_pre_render().
    */
   function MODULE_NAME_views_pre_view(&$view) {
     if ($view->name == 'VIEW_NAME') {
       $node = menu_get_object(); // gets the current node you're viewing
       if(isset($node->FIELD_NAME) && isset($node->FIELD_NAME[$node->language]) && !empty($node->FIELD_NAME[$node->language])) {
         $node_lat = $node->FIELD_NAME[$node->language][0]['lat'];
         $node_lon = $node->FIELD_NAME[$node->language][0]['lon'];

         // change sort
         $view_sort = $view->display_handler->get_option('sorts');
         $view_sort['SORT_CRITERIA']['source_lat'] = $node_lat;
         $view_sort['SORT_CRITERIA']['source_lon'] = $node_lon;
         $view->display_handler->set_option('sorts', $view_sort);

         // change proximity distance calculation
         $view_field_geofield = $view->display_handler->get_option('fields');
         $view_field_geofield['VIEW_FIELD_NAME']['source_lat'] = $node_lat;
         $view_field_geofield['VIEW_FIELD_NAME']['source_lon'] = $node_lon;
         $view->display_handler->set_option('fields', $view_field_geofield);
       }
     }
   }


8. Enable the module and then head to a node page where you've set the block to display on.
9. You should see the block with the correct distance and the results sorted from closest to your node to furthest away.

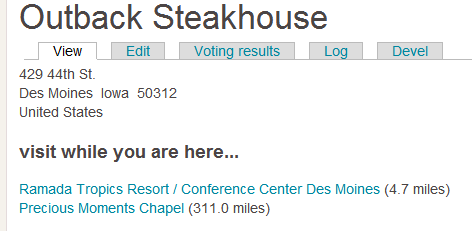

   First Page Example

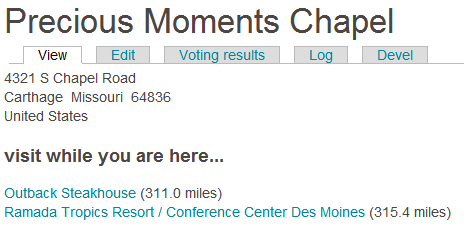

   Second Page Example - long story with Precious Moments Chapel :)


For my current project, I just created another "Source of Origin Point" and hacked in similar to what you have above and it seems to work fine. Less logic processing, as well, and no custom module extra stuff. Ultimately, it would be nice if relationships would do this (grab the current node's geofield data for source). When I get some free time to figure out how that works (right now working 16 hour days and China internet is not cooperative...so I don't think it will be soon), I'll give it a shot and see what I come up with.

Until we're able to see the miles between a geofield and the current user would I be wasting my time trying to use geolocation with their proximity search module? Right now I'm geocoding an address field to a geofield.

I need to show the distance and also create a few views filtered by distance from current user. I installed geofield and geocode yesterday and I'd like to stick with using these in the future. What would you suggest I do, if anything, while the distance issue is being sorted out here?

If you're fine jumping into code it shouldn't be hard to do what you're suggesting using the code samples above. You'd just pass in the user's lat/long to the View.

@ #5 Can you share how you did this? I'd rather stay away from creating a module If I can. I'm not that experienced.

My understanding of what sgp913 did in #5 is added code to this module to build out another option in the drop-down. Just as much code as the solution in #4 unfortunately. If you're wanting to have someone else do it I can jump in and just bill you for the time it takes and then we can contribute it back to the geofield module. I'd envision just adding a drop-down "Current User Location" and then selecting a field from the user profile. PM me if you are wanting that!

The challenge with paying (unless you're talking very minimal) is this - I already have location module installed and out-of-the box it holds address, calculates distance, shows distances from current user, allows filtering and searching by distance, etc. Where is gets tricky is it's lack of rules integration.

So I looked into the very-confusing options of geo this and geo that, then geo code here, proximity there (i'm not complaining, just giving the outside view) and I've finally arrived at addressfield, geocoder, and geofield. But, after all this confusion I'm still left without the very basic ability of seeing, viewing, and filtering the distance between addresses. I realize this is all a work in progress, and I'm following the threads about it, so I am trying to get a feel for when this ability will be available, and trying to determine - do I stick with Location mod for right now, try another angle, or pay, or maybe chip in.

As a side note - what would be wrong with using the same code Location mod uses in views so that when a proximity/distance field is added it asks if you want proximity from a certain point or from logged in user. I assume it then looks at lat/long of logged in user when doing its calculations? I'm ignorant in this area so I don't know if cross-coding from others is proper module building or not.

thanks for all your help.

I'd echo IWasBornToWin's comments - Location has good Views integration for proximity, and it would certainly be good to implement this with GeoField. In reality what would be useful as an origin point for any proximity measurements is a Field and Sort handler for:

1. User position (current user or via contextual filter input)
2. Static position
3. Node (from contextual filter input)

(See http://drupal.org/files/location-proximity-field.png for a screen shot of Location's options in D6).

I had a go at 1 and 3, but can't get my head around the Views handler code, so ended up writing a short hack in SQL. And as for a distance filter or exposed filter for postal code [as origin] - my head truly exploded.

Would be willing to chip in if anyone thinks they could get something up in the next week.

#8,

I put the code I used here: http://drupal.org/node/1469956#comment-6133620

Just remember to change the name of the field. Also, it's very hacky and really shouldn't be done this way, but it works.

@IWasBornToWin - I'd have to say stick with Location for now. Unless there is expected functionality to be released soon, Geofield is still a little behind on proximity filtering. We're going to be building on to our geofield system soon so wanted to makes sure we didn't get stuck in the dark ages with Location, but if your site is more a one-hit-wonder and you don't expect to do a ton of modification to the setup in the coming years, Location is your best bet.

Here's my dilemma - location blows everyone away with its proximity features. But, it lack big time with Rules. Also, it's going by the wayside so I will end up with addressfield/geocode/geofield anyway. Worse, I have rules firing to a. Validate address identity and b. give credit to people for doing certain things with certain nodes within a certain distance. All of those rules would have to be changed even if location had a smooth port into addressfield and geofield. Your solution in #4 is starting to look more enticing. What I can't figure out is - if anyone looks anywhere in drupal they will NOT find a proximity feature even close to location. (unless i'm missing it) so your solution in #4 does seem close.....why isn't that being added to geofield as a patch while we all wait in anticipation?

Yeah, that is what I ran into as well. It isn't a patch yet because nobody has taken the time to make it one. It would need to be extended not a ton, but definitely some hours of work, to have a list of content type fields / user profile fields that could be chosen from.

Hi arrrgh!

IWasBornToWin contacted me to know if i can do something, i already worked for him on another module.

Could you explain what you want exactly, do you prefer to use geofield or location ? or the both modules ?

Explain in details what you need and what must be done with #4 post :)

Masterchief - we want to use geofield (location is not moving forward). And we'd like to do something similar to what covenantd did with the code above and then his suggestions in #15. The bottom line - I at least need to be able to see how many miles are between the current logged in user and the address on another node or user. And also need rules/views to be able to see that information.

Thank you!

Masterchief see http://drupal.org/node/1469956

To bring you up to speed, geofield holds geographical info (longitude/latitude) of an address. It gets that infomation autmatically from geocode. Geocode is told where to pull it from - addressfield, location, etc.

So basically we need to be able to compare the geofield of logged in user to the geofield data of a particular node or other user field and then calculate the distance.

The information is saved definitively or it must be display when you look a member's profile for example ?

I dont think I can answer that. I believe with location module it does not save or store distance, rather it calculates and allows you to see in views. It has an available view field to show that calculation. I also need it in rules, which location does not have.

Look at #4 in this post. geofield already has a funtion in views to calculate distance but only if you manually enter latitude and longitude. Where the dropdown says "Manually enter point" I need to be able to choose "Logged in user" and then have code that grabs the user's point instead of having to manually enter.

Masterchief, also see #9. That would work

Ok i beginning to understood.

So you need to be able to select something because you want points, but another person would like an adress with geolocalization obtained via geocoder module for example.

Maybe a custom php views field could do the trick, i need to see which function are available in the module, but could you explain why you use userpoints? because it's to calculate distance no ?

Masterchief - Points and userpoints has nothing to do with this project. I simply contacted you because you've done work for me (with userpoints) and you're good, fast, and reasonably priced, so I wondered if you could do the patch that connantd talked about in #15?

So i would like to test on my own, what is your configuration?

Geocoder + Geofield and ? You use a module like addressfield with geocoder ?

Correct. I have addressfield for user. I have a geofield for user. I tell geocoder to geocode the address to geofield using google geocoding. What a tonGEO twister! :)

Don't you dream of geocodes during your nights? haha (^_^)

I will looking at it tomorrow :)

@MasterChief I echo all of the above from IWasBornToWin, although I need a field/sort handler to allow a nid contextual filter input (ie, another node that has a populated Geofield) to be used as the origin point for calculating distance.

arrrgh, masterchief has agreed to make us a patch - for a fee. I've dicussed pay options with him and he is supposed to send you a private message. He is very good.

based on what you said, it sounds like we need at least three origination options:

manual
logged in user
manual node id

Is this correct?

I think the best method is just to select directly the field which regroup all the existing geofield fields, maybe restrict them with a views relationships, i need to see how views works with drupal 7, i am more friendly with drupal 6, but i don't think it doesn't work in the same way :)

@IWasBornToWin all correct: messages passed; dosh discussed. If it all works, the patch should be posted on this queue for additional review and eventual commitment back to the project.

Thumbs up

I just finished the part for current user (^_^) but let me understand why use manual nid why don't just copy the geocodes from the node you want for example with manual method, i am trying to do it like say arrrgh but it's just a pain lol xD

I need to see why it's needed, what it's the problem with what i said just before.

Did i miss something?

EDIT:

It doesn't work hahaha, now i understand xD

EDIT2:

Ok i understood the problem, i just don't take the right datas, i am a fool lol :p

I don't think you're a fool. You do excellent work....thank you!

Now i have 2 things working :

1) user and another user

2) an user geofield(in the case you have 2 geofields for example like address 1 with a geofield and address 2 with another geofield) with a node geofield.

The point 2 is what you want arrrgh ?

Awesome!

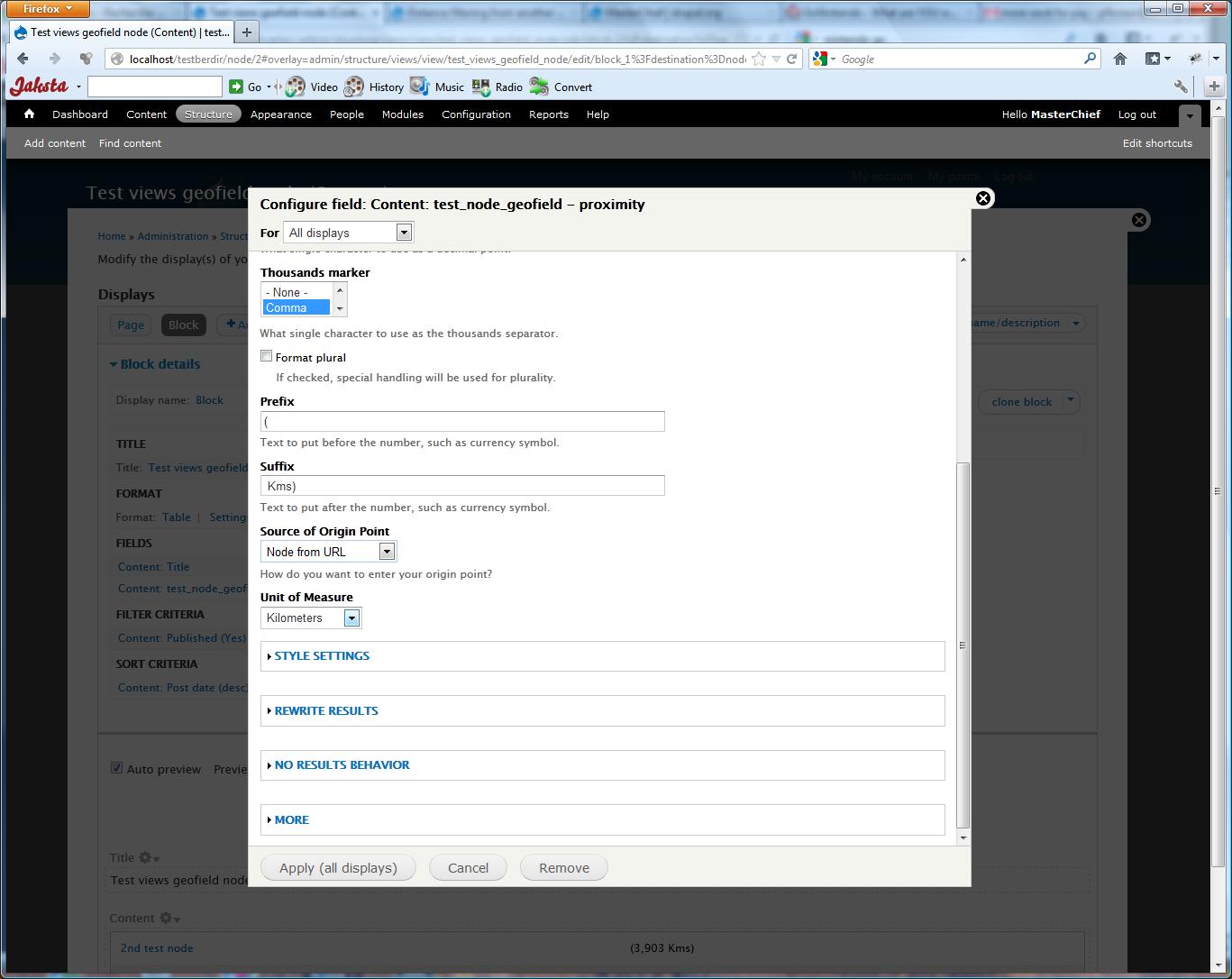

Here some screenshots about what i added with my patch.

Looks great, Masterchief. I'm ready for delivery if arrrgh is.

Me too. Great work

Here the patch :)

Way to go, MasterChief! Definitely a solid start and might be all arrrgh and IWasBornToWin need for now. If this is going to get committed back to the module there are a few tips (I'm not familiar enough with the module to speak to architecture so will let others hit that, just Drupal coding style tips)

I recommend taking a look at Coder. This module can point out and help with a lot of the work to make your code Drupal-friendly. Alternatively, reading through http://drupal.org/coding-standards will help too. That will make your patch far more likely to get easily added to the module!

I'm curious (and didn't dig enough into the patch for the answer), how does "Node from URL" and "Current User" work without a "Field to select for proximity" option - or do those have one now? Does it just loop through the node/user and check if any of the fields are geocoded fields? What happens when you have two geocoded fields in a node/user?

Cool to see progress on this!

I just got around to trying out my version is Masterchief's new work. So far is meet my immediate needs. I will play around with it more tomorrow. I think this is a huge step forward for anyone wanting to leave Location module. Thanks

Works well for my current use case - which is Node from URL (so it's a View embedded as a Content Pane within another node). For me this was essential to provide a 'Other venues close by' function

This option works by seeing if any of the [origin's] node fields contains a 'lat' and a 'lon'.

<?php
$nodeobject = menu_get_object();
if(!empty($nodeobject)) {
  $nid = $nodeobject->nid;
  $node_fields = node_load($nid);
}
if(!empty($node_fields)) {
 $position = field_get_items('node', $node_fields, $this->definition['field_name']);
}
if(!empty($position)) {
  $this->options['source_lat'] = $position[0]['lat'];
  $this->options['source_lon'] = $position[0]['lon'];
break;
}
?>

Great job and adds tremendous functionality to Geofield.

Quick re-roll of MasterChief's patch to comply with coding standards. Fixed a minor typo too. Please review

Great job!

I'm glad I was able to contribute to this. I think this promoted geofield/geocoder to a whole different level - at least from the time [alot] I spent looking for another alternative.

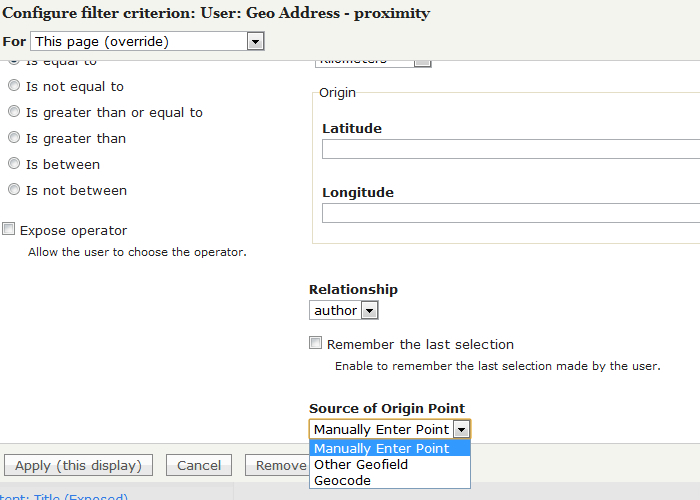

Masterchief - little problem....can't do an exposed filter by proximity. We need the identical options that you allow in the view please - current user, etc.

Thanks

Masterchief, see dropdown for filter. It doesn't have "current user" or any of the other choices that the field view has:

A filter (exposed or otherwise) on proximity requires another handler (geofield/views/handlers/geofilter_handler_field.inc) to be reworked. The field and sort handlers have been addressed by the sterling work done by MasterChief, but a filter handler is quite a lot more effort, and probably a separate issue (although it's a feature I wouldn't mind seeing).

If you are working with OpenLayers at all, then the OpenLayers Proximity module may help you if this is urgent.

We also need to get a few others to review the functionality and maybe address the issues raised by @Brandonian at #45 so that this feature can move forwards.

Changed function name from get_geofield() to geofield_get_geofields(). Changed DB query to abstracted API. Re-roll of MasterChief's patch again.

/**
 * Function to return list of all geofields form all content types
 * Returns a DatabaseConnection_mysql object
 * @return array
 */
function geofield_get_geofields() {
  $query = db_select('field_config', 'f');
  $query->condition('type', 'geofield');
  $query->fields('f', array('field_name'));
  $geofield_list = $query->execute();

  return $geofield_list;
}

Nice re-roll arrrgh :)

I can't explain better than Arrrgh about exposed filter in #49.

And about exposed filter, i think this must be fixed before something could be done :

http://drupal.org/node/1594640

I'm lost. All I know is, I need to be able to allow a user to do a search and type in 50 for the number of miles away they want to see a list of content from a view. That list being content which has a geocode and can be calculated to be within 50 miles and who in the view. This is what I do now using location module and what I said I needed to do with this module. If I can do this right now can you please let me know how?

patience IWasBornToWin,

We have our greatest minds working on it around the clock!

I'm fine phayes, just not everything I expected when I paid for the patch. Masterchief does great work, I'm sure we will get there. I'm about to check to see how it works with rules, I'm afraid I may run into the same problem.

I can answer your first part, from what I am using it for. I have a geofield for user's address. I have created a view of a node which is related to the author of the node. I show node fields and user fields on the view. One of those fields is the view is the geofield proximity because I want the current user who is viewing the node to see how many miles the node author is from them.

So I assume the user-field-geofield is being calculated with the origination point (I selected current user) in order to give me to proximity value I need.

Can we add 'Current User (HTML5)' to the list?

Is there a new patch for current dev. Happy to start testing.

In my case I'm using "Node from URL" option. As a user I can say that the re-rolled patch #50 is working very good, but the actual node is also included when you show the block in the node page. How can we exclude the current node from the list in the block?

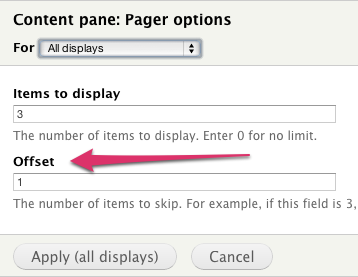

You have to go to your Views pager and exclude the first result (ie, offset of 1)

Edit: error message disappeared on clean install

I just learned [the hard way] that Masterchief's patch isn't in the latest version in case someone finds themselves on the module updates page and forgets.

What needs to happen to move this forward and get something comitted? Would it be better to separate some of out into separate issues?

I've tested field display and sort:
- Node from URL
- Node and User

and both work

I was going to suggest opening separate issues for:

1) Add proximity filter so that results can be filters by distance
2) Add proximity contextual filter so that results can be filtered using parameter in URL
3) Add 'Current User (HTML5)' for field display, sort and filter so that we can filter results based on position of current (logged out) user

Does that make sense?

Still wondering when we can filter on distance?

Also, when an anonymous user views content, there's obviously no field with an address to get geo info from. So the distance calculator is returning a value of 5,755.3 Miles. I'm using in this views, I tried to tell it to display a "no results" value but apparantly views does see 5,755.3 as results. Just wondering how geo is coming up with that value. It appears it is defaulting to a certain lat/long.

i tried to apply the patch from #50 with git and aptana. it said it contained multiple patches and didn't work. is this the right place to ask for help? :)

Even anonymous users could supply their HTML5 geolocation...Would be great to have an HTML5 geolocaiton call if address field is empty or the user is anonymous.

@BOZE I manually applied the patch from #50 and it works. the current dev version is differ from one used for that patch.

@phayes, I'm still waiting and wondering when I will get the distance filtering I paid for, and was expecting in the patch by Masterchief?

According to your comment at #54, you asked me to be patient and told me you have your greatest minds working on it around the clock. That was over two months ago.

I'm being both patient and understanding, but I really needed this feature back when I paid for it....and much more now. Can you give me an update please?

Thanks

Hi IWasBornToWin,

The patch submitted, #50, has a bunch of issues identified by Brandonian in #56. Until.those issues are resolved and a new patch submitted, we cant merge it in. I appreciate you are in a difficult situation, but most of us are volunteers here.

If you need this I would suggest working with the developer you paid until the patch is in a state where we can merge it, or reach out to another developer who can.

can you post the code for doing this? tnx

@windsurfitaly This issue has already been fixed and the patch is linked in #71.

tnx but is all is discussed here in the last dev version of the module? i cannot see all is here in https://drupal.org/files/masterchief_1.patch in to the version of the module i have.. (?)

The patch should be committed in 2.x-beta1 and in 2.x-dev, so as long as you have either of those you should be fine. There will not be a patch file once the patch is committed; it will just be part of the module.

I hope everyone in this thread is still around. After many many weeks of searching I finally found this thread! You all make it sound so easy, but it’s driving me crazy!

I hope you can/will help.

I need help with: Geo Proximity between two geofields

I’m using: D7.26; Geofield 7.x-2.1; Address Field 7.x-1.0-beta5

Here’s what my site is and how its structured...

I have a classified ads listing site (using project/ed_classifed). Right now users, in their profile settings, must select their State and up to 20 surrounding cities (their target audience). Visitors would use Views filters to search State > City > Category > Item. If the visitor’s selected “State” and “City” is one the user included above, then that ad will appear in the results. This method works well, but it’s not flexible at all. I want to move away from this method and go to geo proximity.

I’ve begun by adding the project/addressfield to the user profile and a geofiled for storing their address. But I’m having a really hard time getting Views to produce results correctly.

This is what I would like to have...

I would like authenticated visitors to be able to select 5, 10, 20, 40, 60, 100 miles to list ads within those distances. PLUS show the distance (miles) between the authenticated visitor’s address and content (the ad) author’s address. I would like the same for anonymous visitors using their IP address. Although, for anonymous visitors I may leave out distance as an incentive to create an account, but I still need them to use the preset distances above. I guess I’m assuming that collecting content/ads using the presets is simpler to setup and adding “distance” takes more work..from the developers perspective.

The “distance” is less important to me since only the City, State, and Zip Code are required in the address fields (I removed “Address 1” field requirement). Most of my users will NOT include their street address, and without a street address “distance” could be +/- a factor of 20 miles in some cases. Ultimately I may really want this. Google maps accepts cross roads very well, so in Address 1 (of Address Field) a user could have a cross road for their street address and google will still provide “distance” very accurately.

NOTE: The ads (content) do NOT have an address field. Only the author does (in their profile).

A clearer example would be as follows: You’re logged onto my site and go to the search page. There you will select a category and item to search for, and lastly select the preset radius you wish to search, 20 miles for example. The results will be all ads in your selected category within 20 miles of YOUR address (which is already in your account profile settings). The results also show the number of miles between YOUR address and the address of the content/ad author.

i.e., Between the “User viewing the content” (assuming they are logged in), and author of the content. The Address Field and Geofield are in the profile of both.

Sorry if the examples are overkill. Just want to be sure.

I’m prepared to pay for any extensive service. I’m also willing to pay extra for a tutorial of the method so that the rest of the community will have it.

Thank you so much!
