How to configure QuickTabs Field Collection

I think a step has been missed, or there is a misunderstanding of what this module does.

This module will take a an existing field collection and allow you to use one of the fields as a tab label, and one of the fields as the body, via QuickTabs. I just went through the configuration process on a brand new site and took some screen shots along the way:

Step 1: Field collection creation

Step 2: Field collection configuration

While technically not required the field collection field you create should be set to contain unlimited values.

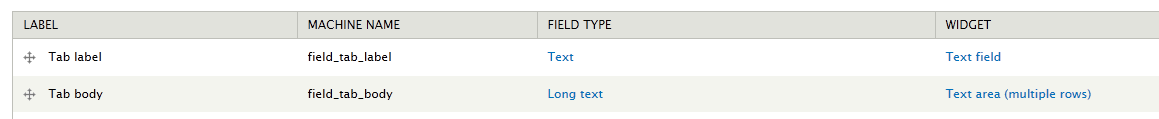

Step 3: Add field collection fields

The field collection can contain any number of fields, but the module only supports the display of two: a label, and a body. These two fields can be of any type (they are run through the Drupal render system), but a text type is recommended for the tab label.

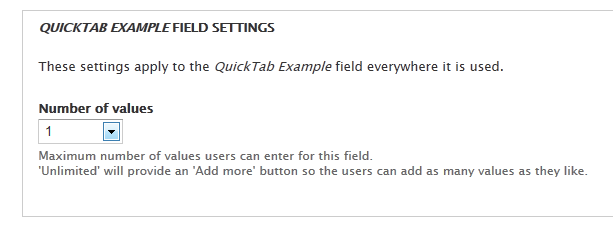

Step 4: Field collection field settings

These fields should be set to contain a single value. You can set these to unlimited, but only the first value will be used.

Step 5: Set the formatter

Now that the field collection has fields added to it the instance of it on your node needs to be set to use the QuickTabs renderer.

Step 6: Formatter configuration

There are several options available on the formatter, but only the tab label and body source fields are required. The fields available in these dropdowns are the fields on the field collection entity. The tab label will always be run through check_plain, whereas the body field can contain markup.

Step 7: Adding tabs

This is what editing a node looks like with the above configuration. It's pretty straightforward with a spot for a label and a spot for the tab content.

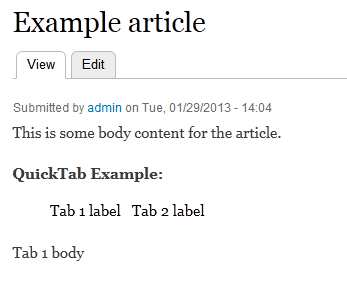

Step 8: End result

This is the result of following the above steps: Two (unstyled) tabs.

And just to show that a textarea does not need to be used for the tab body, here is an example of a list field being used as the tab body:

Because of the way the tab body is retrieved you can use complex Drupal types (even field collections) in order to build tabs that contain more than text.

Is this more-or-less the same path you took when configuring the module on your site? The errors you posted suggest that the settings were never saved for the QuickTabs formatter. Did you select the formatter without configuring the field sources?

I can get rid of those warnings fairly easily, but it won't solve your problem. I need a bit more information on how you're using the module (screenshots of settings would be great).

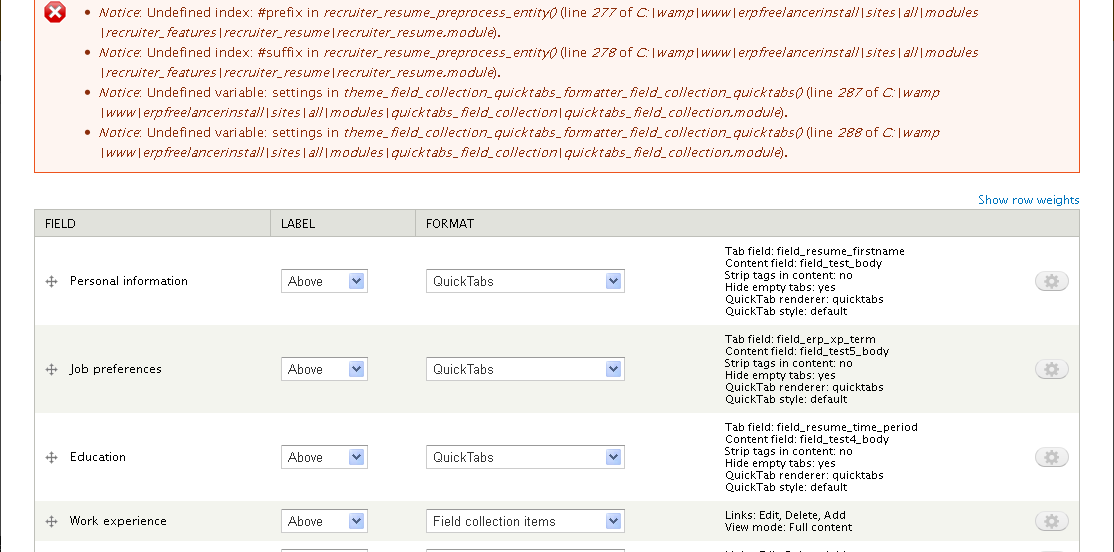

In your screenshot... Would you be expecting the tab's label to be "field_resume_firstname", "Personal Information", or something else?

While, yes, you must use one field as the body content it does not have to be a long text. You can use a field collection of other fields instead. I think this is the functionality you're trying to get. If you want users to fill out more than one field and show that in the tab then create a field collection with those fields, and use that newly created field collection field as the source of the tab's body. Presto, bango, a complex set of data gets shown in the tab instead of simple text.

The prefix/suffix warnings are because the other module assumes any field has that set on it. It's safe to ignore (it's just a PHP warning that a variable is being accessed that is not set). It's lines 277 and 278 here.

I suspect that this module is also doing something else to get the tab fields to show without being passed in any settings, but I will try to reproduce the error on my demo site.

Found the issue. It was pointed out that my settings variable had a different name in certain spots (remnants from when I renamed it). This should be fixed now.

I've done a lot of rework (and testing) on the settings implementation and have not encountered any errors. If you update the module to the latest version on the repository you should have new options available to you to configure the different renderers. Until you re-configure the field formatter and save those new settings there will be warning messages (since the way the settings are stored is different).

Ah, okay I see where some confusion is coming in to play between us.

You are trying to use this module to present the end-user with a way to enter content. I come to your page, fill out some information, click the tab, fill out more information, etc.

Is that correct?

If so, the module wasn't really meant for that. In fact, it's overkill for that sort of functionality. I would recommend checking out Field Group instead. It will allow you to create tabs (with labels) and put fields under each tab. It's a good module, and I believe more suited for what you are trying to do.

This module is more designed for presenting content that was entered on the backend.

So you're saying that each value a user enters would be one "tab"? I click "Add" and fill out the form. If I click "Add" again, the data I entered originally collapses down into an accordion tab and I can enter new information. This process repeats until I am finished, so the end result is something like this:

 ______________
|______________|
|______________|
| entered data |
| entered data |
| entered data |
 ``````````````

If I clicked on one of the sections, I would get:

 ______________
|______________|
| entered data |
| entered data |
| entered data |
|______________|
|              |
 ``````````````

Is that correct?

This module definitely doesn't do that. It can do that for field collection data that is already there, but not as a way to take input from the user.

This module is exactly what I want, but cannot get quick tabs to show in the display format options - stuck at this point.
Have installed entities, quick tabs and quick tabs collection. Can you please advise.

What field type is the field you are trying to use QuickTabs on?

What options do you have for the field renderers?

Are you sure you are not looking at the field widget options?

Thanks for your reply Steven..In response to your questions, I am in 'manage display' of a custom content type. Looking at format options (definitely not looking at widget). Options are:

Links to field collection items
Field collection items
Fields only
hidden

Following the steps provided at http://drupal.org/node/1902254#comment-7000450 did successfully result in the creation of the tab title and body but of course without QT's it is not rendered.

I have now combed through the documentation for entity API, field collection and QuickTabs to find a way to enable QuickTabs as a formatter but cannot locate this info - hence still stuck. Keen to get a solution and move forward. Pls advise.

Just to be sure, have you enabled this module? It's not "QuickTabs" it's "QuickTabs Field Collection". There's really nothing that should stop it from showing if it's enabled.

Can you try clearing your Drupal cache?

Can you list the specific versions of the following:

• Drupal
• QuickTabs
• Field Collections

Thanks for your replies

Field collection view looks like it will do the trick thanks kaizerking will play around with it.

Steven you have cast some light on the problem identifying the module as QTFC. I have 'Field Collection' installed and have been thinking it uses Quick Tabs.

Versions as follows:
Drupal 7.18
QuickTabs 7.x-3.4
Field Collections 7.x-1.0-beta5

Yes have cleared cache

Cannot locate the download for the QTFC module itself. This is probably the solution can you pls direct me to the download.

This module is QuickTabs Field Collection. It's the one that lets Field Collections and QuickTabs work together.
