As was pointed out on the documentation mailing list, the "action links" on each module handbook page are all relative links (for example "admin/settings") and thus lead to 403 errors (if the user viewing them doesn't have proper permissions) or 404 errors (if the module given is not installed on Drupal.org).

The relative links are required because core/contrib admin help documentation is generated from these handbook pages (so eventually, http://www.drupal.org/ gets replaced by http://www.example.com/). However, in the meantime, all of these handbook pages look like they have errors in them. See the User module handbook page for an example. Clicking on any of the "You can:" links results in a 403 error (unless of course you're Dries ;)).

My suggestion to solve this issue was to "tag" the links in the handbook, using a naming convention something like:

<strong id="drupal-link_admin-settings">administer >> settings</strong>

This would result in these links showing up as bold items, indicating the menu paths a user should use, but NOT active hyperlinks that, when clicked, would generate errors. They would also be uniquely tagged with an ID which would be invisible to the browser, but which could be used to regenerate the links later.

Upon export to admin help documentation, these pages could be run through a script which would parse them with some regex magic, more or less performing the steps:

1. Find an occurrence of the string: <strong id="drupal-link_(linkpath)">(linkdescription)</strong>
2. In linkpath, replace the '-'s with '/'s to build the relative link path.
3. Replace the whole <strong>...</strong> string with <a href="(linkpath)">(linkdescription)</a>
4. Repeat for entire page.

What do you think?

CommentFileSizeAuthor
#29 adminhelp_2.txt57.76 KBwebchick
#28 makeadminhelp_4.php8.02 KBwebchick
#25 makeadminhelp_3.php7.29 KBwebchick
#19 screenshot-aggregator-help.png45.93 KBStefan Nagtegaal
#17 makeadminhelp_2.php6.05 KBwebchick
#11 adminhelp_1.txt54.27 KBwebchick
#10 makeadminhelp_1.php5.85 KBwebchick
#7 adminhelp_0.txt54.09 KBwebchick
#6 makeadminhelp_0.php5.52 KBwebchick
#4 adminhelp.txt47.78 KBwebchick
#3 makeadminhelp.php3.98 KBwebchick
#1 docparse.php3.33 KBwebchick

Comments

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new docparse.php3.33 KB

Here is a VERY rough script just to show as proof of concept.

to use:

1. Make a folder called "docparse" or whatever on your web server and place this script inside it
2. Make the folder writable
3. Save http://drupal.org/book/export/docbook/279 as modules.xml in the same folder as this script

What it does is first parse the contents of modules.xml (direct dump from handbook) and creates modules_updated.xml. This simulates a dump from the handbook after all of the links have been encoded in <strong> tags.

Then, it reverses the process and replaces the <strong> encoded links with anchors and saves this as modules_replaced.xml. This simulates taking the dump from the handbook and formatting it for admin/help use.

I haven't tested this overly thoroughly, but hopefully it will give you an idea of the logic, etc.

Amazon’s picture

Amazon commented

Here is an example of a Drupal core module patched with administration help
http://svn.civicspacelabs.org/trunk/modules/aggregator.module
Here is an example of the desired output:

case 'admin/help#aggregator':
return t('

The news aggregator is a powerful on-site RSS syndicator/news reader that can gather fresh content from news sites and weblogs around the web.

Users can view the latest news chronologically in the main news aggregator display or by source. Administrators can add, edit and delete feeds and choose how often to check for newly updated news for each individual feed. Administrators can also tag individual feeds with categories, offering selective grouping of some feeds into separate displays. Listings of the latest news for individual sources or categorized sources can be enabled as blocks for display in the sidebar through the block administration page. The news aggregator requires cron to check for the latest news from the sites to which you have subscribed. Drupal also provides a machine-readable OPML file of all of your subscribed feeds.

You can

For more information, read the configuration and customization handbook aggregator page.

', array('%aggregator' => url('aggregator'), '%aggregator-sources' => url('aggregator/sources'), '%admin-block' =>url('admin/block'), '%aggregator-opml' =>url('aggregator/opml'), '%admin-aggregator' => url('admin/aggregator'), '%admin-aggregator-add-feed' => url('admin/aggregator/add/feed'), '%admin-aggregator-add-category' => url('admin/aggregator/add/category'), '%admin-settings-aggregator' => url('admin/settings/aggregator'), '%admin-access' => url('admin/access')));

All relative links have been replace with variables and then added to an array as pairs. I am reviewing the output of your code right now.

Cheers,
Kieran

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new makeadminhelp.php3.98 KB

Ok, here is another rough script that will output an expected case 'admin/help#path': for each core module. It also wraps each line in its own t() function, per http://drupal.org/node/26139. To try it:

1. Put this script in a writable folder on your web server
2. Save http://drupal.org/book/export/docbook/279 as modules.xml in the same folder as this script
3. The output is saved to a file called adminhelp.txt.

It's not quite "there" yet as there are still a couple bugs... For instance, profile doesn't get picked up at all (you'll see a warning to this effect when you load this), and there's at least one wrapping link (on the taxonomy module page) which it doesn't pick up either. But otherwise, this is working probably about 90%, and I'll try and sort these other problems out tomorrow if I get a chance.

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new adminhelp.txt47.78 KB

Just as a helper.. this is the output of the above script, so you don't have to go through all the setup routines to review it. :)

Amazon’s picture

Amazon commented

This is one of those simple things that will make a huge difference.

The Docs team now has the ability to update the source documentation here: http://drupal.org/handbooks/modules and with this script we can just hand a file to the development team to roll a patch.

A big thanks to webchick for cranking this out.

Kieran

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new makeadminhelp_0.php5.52 KB

Ok, probably about 99% there now, I hope. :) Here is the updated script (getting REALLY ugly now *lol*). Will post the updated output in a second.

After talking to killes on IRC, he brought up the point that t() blocks should be like:

'<p>'. t('...') .'</p>';

and for lists:

'<ul>' .t('<li>....</li>');
t('<li>...</li>') .'</ul>');

So the current script does that.

I still have two outstanding issues that I'm aware of (possibly more, it's 5am :P):

1. When there are multiple links on one line (see: BlogAPI), it only seems to find the first link/description and repeats it for all other links on that line.

2. I cannot figure out how to generate a "normal" link with a Drupal function call! l() and url() both appear to do basically the same thing--format an internal link. However, Drupal module for example has a link that is just cron.php... Which of course is not the same thing as ?q=cron.php. Similarly, all external links (BlogAPI) get appended to the querystring (?q=http://www.flickr.com/).

Any ideas on these (particularly the last one... the first one is likely a fubar'ed regex)?

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new adminhelp_0.txt54.09 KB

And here is the output.

Stefan Nagtegaal’s picture

Stefan Nagtegaal commented

Why do you do:

    case 'admin/help#aggregator':
      $helptext = '';
      $helptext .= '<p>'. t('The news aggregator is a powerful on-site RSS syndicator/news reader that can gather fresh content from news sites and weblogs around the web.') .'</p>';

You can also use:

    case 'admin/help#aggregator':
       $helptext  = '<p>'. t('The news aggregator is a powerful on-site RSS syndicator/news reader that can gather fresh content from news sites and weblogs around the web.') .'</p>';
       $helptext .= 'resume';

And:

      return($helptext);

Should be

      return $helptext;

Furthermore I do really, really like this patch!

Stefan Nagtegaal’s picture

Stefan Nagtegaal commented

I also envourage you to use url() instead of l() and don't forget to t() everything which should be translatable, also in links!

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new makeadminhelp_1.php5.85 KB

By JOVE I think I've got it!!

Thank you very much for your feedback, stefan! I implemented the changes you suggested... apart from using url() in place of l(), because I need to write the link's text as well as destination, which url() doesn't let me do. :(

Attached is the horrendous script that makes it all possible. Will post output in a second, and a patch against the current HEAD to this issue: http://drupal.org/node/26139

Wish me luck! ;)

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new adminhelp_1.txt54.27 KB

And here is the output.

Stefan Nagtegaal’s picture

Stefan Nagtegaal commented

Why do you do:

      $helptext .= t('<li>control access to the aggregator module through access permissions %admin-access.</li>', array('%admin-access' => l(t('administer >> access control >> permissions'), 'admin/access')));

You should do:

      $helptext .= t('<li>control access to the aggregator module through access permissions %admin-access.</li>', array('%admin-access' => l(t('administer'). ' &raquo; ' .t('access control') .' &raquo; '. t('permissions'), 'admin/access')));

This way, you are sure people could not translate 'administer >> access control >> permissions' into other strings as 'administer', 'access control' and 'permissions'...

---

Secondly I would do

    $help  = 'bla';
    $help .= 'bla, bla';

instead of using $helptext.. It is 4 characters less each line, which end up in quite a lot of bytes.. Results in a little faster page building, though it's nitpicking...

This would improve your patch even more IMO...

Amazon’s picture

Amazon commented

You'll need to take the following statement to each module as well:

For more information, read the configuration and customization handbook modulename page.

It's important that we drive traffic back to Drupal.org to improve the documentation and allow for comments to be posted. There's also much more documentation there as well.

Kieran

Stefan Nagtegaal’s picture

Stefan Nagtegaal commented

I don't know if that's a good idea..
I don't want my site to lean on drupal.org for documentation, or whatever..
If you truly want todo such a thing I would rather see a new module or a settings which could be switched of..

Kobus’s picture

Kobus commented

Stefan,

I don't think that the text Kieran talks about will be visible on your site. As I understand it, it would only be in the documentation released with the module? If indeed this would be on the page itself, I also agree that this is a no-no. But it wouldn't harm to put that link in the module's install.txt or readme.txt file.

Kobus

cel4145’s picture

cel4145 commented

Yes. It will be visible on every admin/help page. This was part of the original documentation construction specs that Kieran posted this summer. We could certainly discuss this, but raise a separate issue or disucss in on the docs list.

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new makeadminhelp_2.php6.05 KB

Ok. Just a small update:

1. Changed $helptext to $output, per Dries (sorry, not quite as short as $help but... :))
2. Added line at the bottom which links to Drupal.org module page (note that this ONLY displays in the admin>help area of each module and not anywhere else on the site. No one seemed to raise any horrible cons to doing this on the docs list, so I assume this is ok anyway)

Outstanding issues:
1. Need to format the "You can" blocks, per killes's example here: http://drupal.org/files/issues/agg.help
2. Need to get the >> out of the t() blocks, per stefan
3. There is some bug which will randomly split the string in the middle for no reason, which is causing havoc with the translation stuff (e.g. t('Fin') on one line, and t('ally...') on the other rather than t('Finally...') on one line)
4. I'd like to figure out a way to store the handbook's version of the module name for generating that link, so it comes out as CiviCRM, for example, rather than civicrm.

Stefan Nagtegaal’s picture

Stefan Nagtegaal commented

Webchick, I think you can fix the outstanding issue 2 by doing this:

$output .= t('<li>control access to the aggregator module through access permissions %admin-access.</li>', array('%admin-access' => l(implode(' &raquo; ', array(t('administer'), t('access control'), t('permissions'))), 'admin/access')));

This part of the code will make it a breadcrumb, which makes all the parts separatly translatable and puts ' » ' between each part.

  implode(' &raquo; ', array(t('administer'), t('access control'), t('permissions'))

The rest should be a piece of cake...

Good luck, hope I helped you a little further... :-)

Stefan Nagtegaal’s picture

Stefan Nagtegaal commented
StatusFileSize
new screenshot-aggregator-help.png45.93 KB

Another thing which would be nice, is if you wrap the list items through theme('item_list').. See the example code underneath, which works.... (Tested on my own machine..)

So, instead of:

case 'admin/help#aggregator':
  $helptext = '<p>'. t('The news aggregator is a powerful on-site RSS syndicator/news reader that can gather fresh content from news sites and weblogs around the web.') .'</p>';
  $helptext .= '<p>'. t('Users can view the latest news chronologically in the %aggregator or by %aggregator-sources. Administrators can add, edit and delete feeds and choose how often to check for newly updated news for each individual feed. Administrators can also tag individual feeds with categories, offering selective grouping of some feeds into separate displays. Listings of the latest news for individual sources or categorized sources can be enabled as blocks for display in the sidebar through the %admin-block. The news aggregator requires cron to check for the latest news from the sites to which you have subscribed. Drupal also provides a %aggregator-opml of all of your subscribed feeds.', array('%aggregator' => l(t('main news aggregator display'), 'aggregator'), '%aggregator-sources' => l(t('source'), 'aggregator/sources'), '%admin-block' => l(t('block administration page'), 'admin/block'), '%aggregator-opml' => l(t('machine-readable OPML file'), 'aggregator/opml'))) .'</p>';
  $helptext .= '<p>'. t('You can') .'</p>';
  $helptext .= '<ul>'. t('<li>administer your list of news feeds %admin-aggregator.</li>', array('%admin-aggregator' => l(t('administer >>  aggregator'), 'admin/aggregator')));
  $helptext .= t('<li>add a new feed %admin-aggregator-add-feed.</li>', array('%admin-aggregator-add-feed' => l(t('administer >> aggregator >> add feed'), 'admin/aggregator/add/feed')));
  $helptext .= t('<li>add a new category %admin-aggregator-add-category.</li>', array('%admin-aggregator-add-category' => l(t('administer >> aggregator >> add category  '), 'admin/aggregator/add/category')));
  $helptext .= t('<li>configure global settings for the news aggregator %admin-settings-aggregator.</li>', array('%admin-settings-aggregator' => l(t('administer >> settings >> aggregator'), 'admin/settings/aggregator')));
  $helptext .= t('<li>control access to the aggregator module through access permissions %admin-access.</li>', array('%admin-access' => l(t('administer >> access control >> permissions'), 'admin/access')));
  $helptext .= t('<li>set permissions to access new feeds for user roles such as anonymous users at %admin-access.</li>', array('%admin-access' => l(t('administer >> access control'), 'admin/access')));
  $helptext .= t('<li>view the %aggregator.</li>', array('%aggregator' => l(t('aggregator page'), 'aggregator'))) .'</ul>';
  return $helptext;

Do this:

  case 'admin/help#aggregator':
    $output  = '<p>'. t('The news aggregator is a powerful on-site RSS syndicator/news reader that can gather fresh content from news sites and weblogs around the web.') .'</p>';
    $output .= '<p>'. t('Users can view the latest news chronologically in the %aggregator or by %aggregator-sources. Administrators can add, edit and delete feeds and choose how often to check for newly updated news for each individual feed. Administrators can also tag individual feeds with categories, offering selective grouping of some feeds into separate displays. Listings of the latest news for individual sources or categorized sources can be enabled as blocks for display in the sidebar through the %admin-block. The news aggregator requires cron to check for the latest news from the sites to which you have subscribed. Drupal also provides a %aggregator-opml of all of your subscribed feeds.', array('%aggregator' => l(t('main news aggregator display'), 'aggregator'), '%aggregator-sources' => l(t('source'), 'aggregator/sources'), '%admin-block' => l(t('block administration page'), 'admin/block'), '%aggregator-opml' => l(t('machine-readable OPML file'), 'aggregator/opml'))) .'</p>';
    $output .= '<p>'. t('You can') .'</p>';
    $items = array(
      t('administer your list of news feeds %admin-aggregator.', array('%admin-aggregator' => l(implode(' » ', array(t('administer'), t('aggregator'))), 'admin/aggregator'))),
      t('add a new feed %admin-aggregator-add-feed.', array('%admin-aggregator-add-feed' => l(implode(' » ', array(t('administer'), t('aggregator'), t('add feed'))), 'admin/aggregator/add/feed'))),
      t('add a new category %admin-aggregator-add-category.', array('%admin-aggregator-add-category' => l(implode(' » ', array(t('administer'), t('aggregator'), t('add category'))), 'admin/aggregator/add/category'))),
      t('configure global settings for the news aggregator %admin-settings-aggregator.', array('%admin-settings-aggregator' => l(implode(' » ', array(t('administer'), t('settings'), t('aggregator'))), 'admin/settings/aggregator'))),
      t('control access to the aggregator module through access permissions %admin-access.', array('%admin-access' => l(implode(' » ', array(t('administer'), t('access control'), t('permissions'))), 'admin/access'))),
      t('set permissions to access new feeds for user roles such as anonymous users at %admin-access.', array('%admin-access' => l(implode(' » ', array(t('administer'), t('access control'))), 'admin/access'))),
      t('view the %aggregator.', array('%aggregator' => l(t('aggregator page'), 'aggregator')))
    );
    $output .= theme('item_list', $items);

    return $output;

As you can see I also implemented my point suggested in the comment before...
The advantage of this is that we include even less HTML in the helptext, which is goooood..

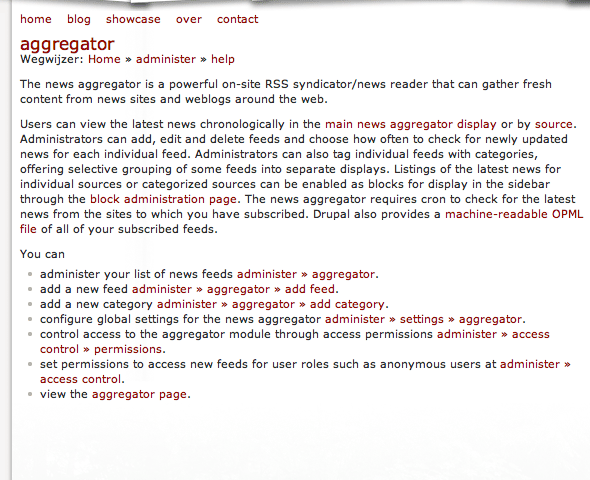

I attached a screenshot, to show you guys how it looks in my own theme...

I think we are _really_ getting somewhere now!

chx’s picture

chx commented

Less HTML is always good. Think of moving implode(htmltag, array()) to a theme function. theme links , I think will be a good candidate.

killes@www.drop.org’s picture

killes@www.drop.org commented

Steef, chx:
If you had looked at the example that I gave you would have noticed that individual li-s won't be strings on their own. They would lose too much context.

Kobus’s picture

Kobus commented

I agree with Gerhard here. Preservation of context is very important. I have just started the translation of Drupal CVS, and it is hell to make sure it is accurate. There are even bugs in my Drupal 4.6.x installation's translation because of this same issue.

Regards,

Kobus

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented

Re: steef's comments about doing:

implode(' &raquo; ', array(t('administer'), t('access control'), t('permissions'))

instead of:

t('administer >> access control >> permissions)

I remember why I did that now.

l() escapes HTML entities in the title. So:

&raquot;

becomes:
&amp;raquot;

And thus instead of printing:

administer >> access control >> permissions

Any ideas on how to solve this? I tried setting the HTML attribute of l() to true, but that doesn't seem to make a difference. :\

it prints:

administer &raquot; access control &raquot; permissions

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented

Bah. I am stupid. Please ignore. :P

If anyone else is wondering though, the answer is to implode on >> itself, not the HTML entities version of it.

Btw, » gave me ? in Firefox, so I changed it to >> as the handbook has it.

Will post an update soon as I get killes' text working.

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new makeadminhelp_3.php7.29 KB

Ok, I've submitted a new patch here: http://drupal.org/node/26139#comment-48325

I've attached the current script, although it still has some bugs in it:

1. It only does the t('

...

') thing if the

contains the string "You can".. silly short-sightedness of me.. I need to change it to check if the next line contains

    and if so, go through the same steps I go through for a "youcan" block.
    2. It only parses out

    tags to go outside the t() statements (e.g. $output .= '

    '. t(...) .'

    '), but there are others (

    in block, for example) to which this rule should apply.
    3. A couple modules randomly get an initial empty replacement value (so replacement array looks like array(, '%something' => ). Need to figure out what's causing that.
    4. The Legacy module gets completely messed up. The last line from the help module's help gets included here and then the next two lines all run together, followed by a series of empty replacements (array(, , , , , )) and finally, $output restarts at the "Legacy has no configurable options" line. Um. Yikes. :)

    However, I ran out of time to troubleshoot these issues so I did some of the final patch formatting manually. I will try and fix the script this weekend (and also clean it up) so that it generates the expected output.

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented

And this, folks, is why you should preview your submissions. :P

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented

Say you translator folks who've been following this thread, could you please comment on Dries's post here:

http://drupal.org/node/26139#comment-48341

In the future, I think I will put everything into one thread so we're not always bouncing back and forth. ;)

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new makeadminhelp_4.php8.02 KB

OK, new copy of script.. modified link output per Dries's wishes, and managed to clean it up a touch (moved a couple things into functions) and also squash all the bugs (I think!).

webchick’s picture

webchick
she/they
Primary language English
Location Vancouver 🇨🇦
commented
StatusFileSize
new adminhelp_2.txt57.76 KB

Here's the output.

rivena’s picture

rivena commented

Is this done, then? I can't tell.

Anisa.

nielsbom’s picture

nielsbom commented
Component: User Guide » Correction/Clarification

Changed the component to reflect the new component categorization. See http://drupal.org/node/301443
-nielsbom

jbrauer’s picture

jbrauer commented
Status: Active » Fixed

By all appearances the Core Help was fixed in http://drupal.org/node/26139 and as it mentions in that issue the pages in the Handbook were updated to be text instead of links.

Status: Fixed » Closed (fixed)

Automatically closed -- issue fixed for two weeks with no activity.
