Preserve image's aspect ratio when width AND height defined
mrb@drupal.org - February 25, 2009 - 08:43
| Project: | Embedded Media Field |
| Version: | 6.x-1.x-dev |
| Component: | Embedded Image Field |
| Category: | bug report |
| Priority: | normal |
| Assigned: | Unassigned |
| Status: | active |
Description
Currently there is no way to fit an image in a specified size, and keep its original aspect ratio. eg the width of our main column is 510 pixels, so I want to set the 'Full size' with and height to be 510.
But the current code then forces all images to display at exactly 510x510 pixels, distorting any images that weren't originally square.
Instead I'd like the image to be scaled to fit within the specified size, but keeping its original aspect ratio.
#1
#2
Please ignore the previous patch, it doesn't work. Here's the function I've changed. The problem is that the call to getimagesize is returning false, though the url seems to be right, eg
"http://farm4.static.flickr.com/3297/3236587333_3f71cdf1e9_o.jpg"
Any ideas why getimagesize doesn't work, or ideas of other ways to find the image's dimensions?
<?php
function theme_emimage_image($field, $item, $formatter, $node, $code, $width, $height, $title = '', $link = NULL) {
$url = module_invoke('emfield', 'include_invoke', 'emimage', $item['provider'], 'image_url', $code, $width, $height, $formatter, $field, $item, $node);
$attributes = array();
// Set the image's width or height attribute for the browser, and let the browser scale
// the image, preserving its original aspect ratio.
// There are three options allowed in the admin settings:
// 1. width == 0. Display image at specified height,
// with width scaled according to original aspect ratio.
// 2. height == 0. Display image at specified width,
// with height scaled according to original aspect ratio.
// 3. Both width and height are non-zero. Change it to display the image
// at the largest size that fits within the specified height & width,
// and preserves the original aspect ratio.
if ($width == 0) {
$attributes['height'] = $height;
}
elseif ($height == 0) {
$attributes['width'] = $width;
}
else {
// Find out the size of the actual image file, and scale accordingly
list($actual_width, $actual_height, $type, $image_attributes) = getimagesize($url) ;
if ( ($actual_width >0 ) && ($actual_height >0) ) {
$scale_width = $actual_width / $width ;
$scale_height = $actual_height / $height ;
if ($scale_width < $scale_height) {
$attributes['width'] = $width;
}
else {
$attributes['height'] = $height;
}
}
else {
// getimagesize didn't work, so set both. Safer, but will lose aspect ratio.
$attributes['width'] = $width;
$attributes['height'] = $height;
}
}
if ($item['class']){
$attributes['class'] = $item['class'];
}
else if ($item['provider']) {
$attributes['class'] = $item['provider'];
}
$output = theme('image', $url, $title, $title, $attributes, false);
if ($link) {
$output = l($output, $link, array('html' => true));
}
return $output;
}
?>
#3
The following code works (it uses curl instead of getimagesize), but fetching the image every time it is displayed is a bit crazy. Any suggestions on the right way to approach this?
I'm thinking to have theme_emimage_image just look in $item for width and height entries, and have emfield_PROVIDER_data responsible for setting those values when the node is initially created. It looks like picasa.inc already does this. Does that sound right?
<?php
function theme_emimage_image($field, $item, $formatter, $node, $code, $width, $height, $title = '', $link = NULL) {
$url = module_invoke('emfield', 'include_invoke', 'emimage', $item['provider'], 'image_url', $code, $width, $height, $formatter, $field, $item, $node);
$attributes = array();
// Set the image's width or height attribute for the browser, and let the browser scale
// the image, preserving its original aspect ratio.
// There are three options allowed in the admin settings:
// 1. width == 0. Display image at specified height,
// with width scaled according to original aspect ratio.
// 2. height == 0. Display image at specified width,
// with height scaled according to original aspect ratio.
// 3. Both width and height are non-zero. Change it to display the image
// at the largest size that fits within the specified height & width,
// and preserves the original aspect ratio.
if ($width == 0) {
$attributes['height'] = $height;
}
elseif ($height == 0) {
$attributes['width'] = $width;
}
else {
// Find out the size of the actual image file, and scale accordingly
$actual_width = false ;
$actual_height = false ;
// THE 'getimagesize' CODE HAS NOT BEEN TESTED YET,
// THOUGH THE CURL CODE BELOW IS WORKING OK
if (ini_get('allow_url_fopen')) {
// It is safe to call getimagesize on a remote file
$size = @getimagesize($url) ;
if ($size !== false) {
$actual_width = $size[0] ;
$actual_height = $size[1] ;
}
}
elseif (function_exists('curl_exec')) {
// Many sites don't have 'allow_url_fopen' enabled, but if curl is
// enabled we can use that instead
$ch = curl_init(); // initialize curl handle
curl_setopt($ch, CURLOPT_URL, $url); // set url to post to
curl_setopt($ch, CURLOPT_FOLLOWLOCATION, 1);// allow redirects
curl_setopt($ch, CURLOPT_RETURNTRANSFER,1); // return into a variable
curl_setopt($ch, CURLOPT_TIMEOUT, 3); // times out after 4s
$curl_file = curl_exec($ch); // run the whole process
curl_close($ch);
$curl_image = @imagecreatefromstring($curl_file);
if ($curl_image !== false) {
$actual_width = @imagesx($curl_image);
$actual_height = @imagesy($curl_image);
}
unset($curl_file, $curl_image);
}
if ( $actual_width && $actual_height ) {
$scale_width = $actual_width / $width ;
$scale_height = $actual_height / $height ;
if ($scale_width > $scale_height) {
$attributes['width'] = $width;
}
else {
$attributes['height'] = $height;
}
}
else {
// We don't know the size of the image, so just make it fill the space available.
// It will probably be stretched in one direction, making it look odd.
$attributes['width'] = $width;
$attributes['height'] = $height;
}
}
if ($item['class']){
$attributes['class'] = $item['class'];
}
else if ($item['provider']) {
$attributes['class'] = $item['provider'];
}
$output = theme('image', $url, $title, $title, $attributes, false);
if ($link) {
$output = l($output, $link, array('html' => true));
}
return $output;
}
?>
#4
subscribe
#5
This works for me - please can you let me know if it's ok for you too.
The first patch is to theme_emimage_image in emimage.theme.inc. This version looks to see if emfield_PROVIDER_data had set values for the image's height & width, and if yes it scales the image to fit within the specified size, while preserving its aspect ratio. If they are not set, it behaves like the current beta1 version.
The second patch is to flickr.inc, so that it sets the height & width required above.
If you have an existing embedded flickr image, you'll need to edit & save it (no need to make any changes) before you see the effects of these patches.
#6
#7
getimagesize will fail if your PHP doesn't have zlib compiled in. If you enable NOTICE logging you should see the exact message. To confirm, go to your Drupal status page, and then click on the PHP version and look at compile flags.
#8
Try with this other patch:
#416790: Fixed bug in widget form that break aspect ratio configuration
#9
Should now be fixed. See the issue linked to in #8
#10
Hi, moving this back to active, as the problem & patch I'm describing are different from that in #8. I'll try and explain it better.
I want to use Views to build a gallery of emfield images, and have it display as a grid of images, just like any other gallery you see on the web.

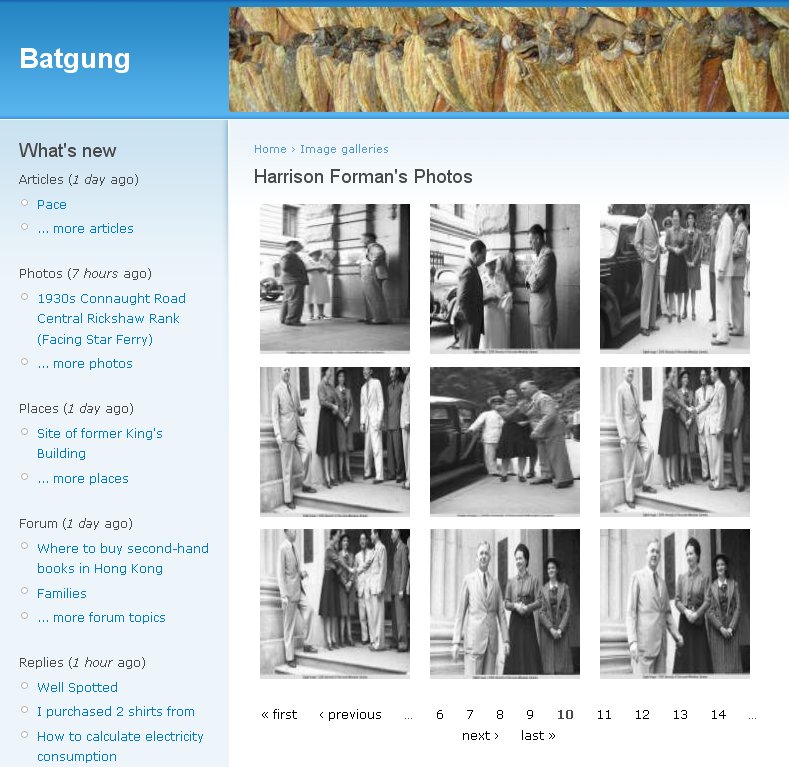

I set the dimensions of the thumbnail to be 150x150. See 150x150-org.jpg. That shows a grid, but all images are stretched to fit the 150x150 square shape, so they are distorted.

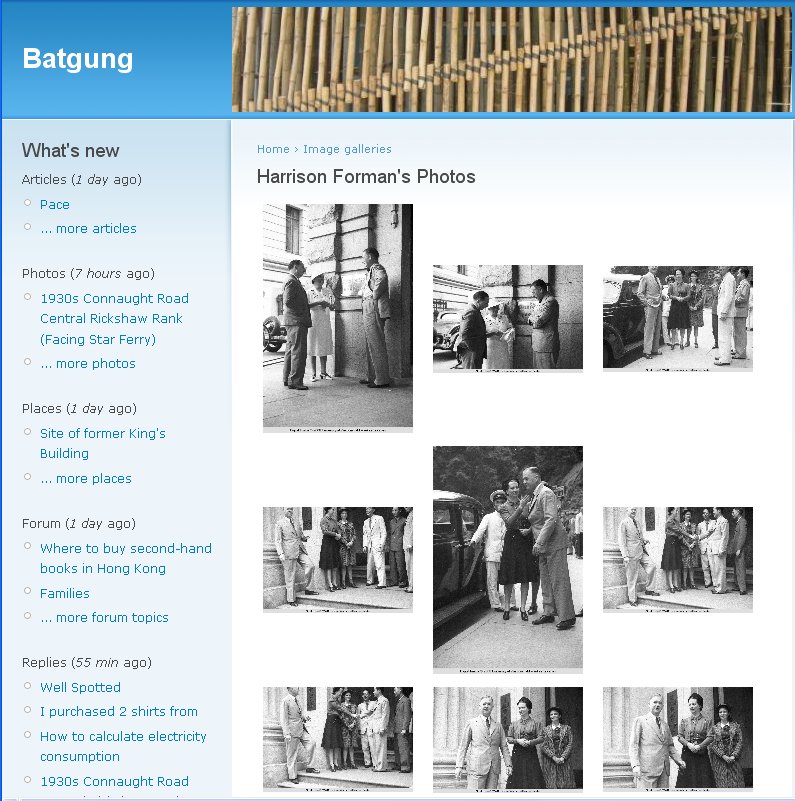

I read that setting one dimension to 0 preserves the aspect ratio, so I tried dimensions of 150x0. See 150x0-org.jpg. Now the images looks ok, but the gallery looks wrong. Portrait images always appear much larger than landscape images, not how a gallery usually looks.
So, the patch in #5 preserves the aspect ratio, AND fits the image within the specified dimensions. After installing the patch, and setting the dimensions to 150x150 we get 150x150-patch.jpg, which I think looks better.
#11
I'm comitting this right now. Thanks for the fix!
#12
I found some typos when last patches were committed into the module, it seems that there are some lost lines.
Also found problems with Flickr when the $item['data'] is serialized so the "square" escalation was not possible.
Once fixed the lost lines in the emimage.theme.inc and fixed the issue with the serialized data, the patch worked genially.
Allowing working in both ways with an automatic size adaptation (using 0 in some dimension) or defining a "squared" max dimensions.
I couldn't test it with other image providers than Flickr.
#13
Very odd. Yesterday I had this working, without your most recent patch. I just added the patch, and now everything is getting stretched again. Is there anything else missing?
#14
Using the dev version, which I think has the latest patches, I receive the following error upon saving, and on displaying a node with an embedded image from Flickr:
warning: Division by zero in /home/thenew/public_html/sites/all/modules/emfield/contrib/emimage/emimage.theme.inc on line 15.
#15
Fixed the division by zero error. Not sure if there's anything else here that needs attention?
#16
OK, Fixed the thing entirely now. Should work fine.
#17
Automatically closed -- issue fixed for 2 weeks with no activity.
#18
I'm using Emfield 6.x-1.x-dev (2009-Aug-26)
I'm facing issue described in #10 (http://drupal.org/node/383274#comment-1514208)
All is like if patch doesn't operate.
I'd want to set width and height so that depending on image orientation (lanscape or portrait) width and height both never exceed certain length. All that respecting aspect ration.
By example I set 150x150 so that :
original image 400x200 is resized 150x75
original image 200x400 is resized 75x150
For me with Emfield 6.x-1.x-dev (2009-Aug-26) it doesn't appear like it would need as mentionned on attached picture : http://drupal.org/files/issues/150x150-patch.jpg
Is the patch commited in dev release ?
#19
Having the same problem, and this seems like a trivial thing. The settings should be:
Max Height:
Max Width:
Keep Aspect Ration (checkbox)
Checkbox should default to checked.
#20
Hi,
I have same problem with other dimension. 1024px × 682px image is scaling to 500px × 800px.
#21
"keep aspect ratio" or "crop" will be perfect.
#22
Subscribing again
