Any Guides or How-To's for making a slideshow block?

Here is a tutorial I'm thinking about adding to the module. Tell me where it can improve.

How to Create a SingleFrame Slideshow of Page Nodes

This tutorial requires Views Slideshow and Views Slideshow Singleframe
modules to be enabled. It also assumes you already have some page nodes.

Create the View

1. Go to http://yoursite.com/admin/build/views
2. Click Add
3. Enter in the view name
4. Click Next
5. Select the page display
6. Click Add Display
7. Click the + next to fields
8. Under Groups choose Node
9. Select Node Body and Node Title
10. Click Add
11. Select Trim this field to a maximum length
12. Under Maximum length enter 100
13. Click Update Default Display twice
14. Click the up/down arrows next to fields
15. Move Node: Title to the top
16. Click Update
17. Click the + next to Filters
18. Under Groups choose Node
19. Select Node: Published and Node: Type
20. Click Add>/li>
21. Select Yes for published
22. Click Update Default Display
23. Select page under Node Type
24. Click Update Default Display
25. Click "None" next to Path under Page settings
26. Add a path. In this case we'll put page_slideshow
27. Click Update
28. Click Save
29. Click View Page and verify it is listing out the page nodes correctly

Set up the slideshow

1. Edit the View
2. Click Unformatted next to style under Basic Settings.
3. Choose Slideshow
4. Click Update Default Display
5. Under Slideshow mode choose SingleFrame
6. Click Update Default Display
7. Click Save
8. View the page and verify the slideshow is working.

This may be the best support response I have ever gotten on Drupal (and that includes "What you are saying is impossible" in response to a freaky bug I was having).

Seriously though, I followed your instructions, and so far, so good. I have managed to make the view as you listed and add it to my frontpage, so that it gently cycles through pages. That is excellent.

If I were to suggest anything, it would be instructions for how to do the following:

1- How to make it show only pages that have been specifically chosen for the content slider (so that admins can make it a featured content slider and restrict regular users from posting things that cycle into it).

2- How to make the images and thumbnails work instead of text, and have them link to the nodes they are meant to represent.

How hard would it be to manage those two things?

Supposedly there are a lot of modules that are supposed to make Featured Content Sliders possible, so surprisingly I have had zero luck getting any of them to work properly - I've made more progress with the instructions you gave me in about 10 minutes than I have with 5 weeks of waiting for My Issues responses on those other modules. Thank you very much!

I uploaded the images, made my view, but nothing's coming up.

I followed all those steps, but I can't see anything.

I created a content type JUST for images. Do I have to do something special with my image content type?

Also, I can't find a mod called "Views Slideshow Singleframe". Search came up nothing, but single frame was available in the view.

Ok, I apparently didn't have all the modules installed correctly.

Boy, do I feel dumb.

Fantastic walkthrough, though!

Thank you!

@webbstre Thanks for the compliments. Try this one for creating image slideshows.

How to Create a SingleFrame Slideshow of Images

This tutorial requires these modules to be enabled:

• Views Slideshow and Views Slideshow Singleframe
• cck (content)
• FileField
• ImageField

Create the content type

1. Go to http://yoursite.com/admin/content/types
2. Click "Add Content Type"
3. Enter a name. "Slideshow Item"
4. Enter a type. "slideshow_item"
5. Click the "Submission form settings" fieldset
6. Clear the "Body" text from the "Body field label" field
7. Click the "Workflow settings" fieldset
8. Uncheck "Promote to frontpage"
9. Click the "Comment settings" fieldset
10. Set "Default comment setting" to disabled
11. Click "Save Content Type"
12. Next to your new content type click "manage fields"
13. Under "New Field" enter a label. "Slideshow Image"
14. Enter a field name. "field_slideshow_image"
15. Select the "File" field type.
16. Select the "Image" form element.
17. Drag the new field using the cross handle to below the "Title" field.
18. Click "Save"
19. Under "Global Settings" check "Required"
20. Click "Save field settings"
21. Create some Slideshow Items

Create the View

1. Go to http://yoursite.com/admin/build/views
2. Click "Add"
3. Enter in the view name. "slideshow"
4. Click "Next"
5. Select the page display
6. Click "Add Display"
7. Click the + next to "fields"
8. Under "Groups" choose "Content"
9. Select the image field you created. "Content: Slideshow Image"
10. Click Add
11. Under "Label" choose "None"
12. Under "Format" choose "Image Linked to Node"
13. Click "Update Default Display"
14. Click the + next to "Filters"
15. Under "Groups" choose "Node"
16. Select "Node: Published" and "Node: Type"
17. Click "Add"
18. Select "Yes" for published
19. Click "Update Default Display"
20. Under Node Type select the content type you created "Slideshow Item"
21. Click "Update Default Display"
22. Click "None" next to "Path" under "Page settings"
23. Add a path. "slideshow"
24. Click "Update"
25. Click "Save"
26. Click "View Page" and verify it is listing out the images correctly

Set up the slideshow

1. Edit the View
2. Under "Basic Settings" click "Unformatted" next to "Style".
3. Choose "Slideshow"
4. Click "Update Default Display"
5. Under "Slideshow mode" choose "SingleFrame"
6. Click "Update Default Display"
7. Click "Save"
8. View the page and verify the slideshow is working.

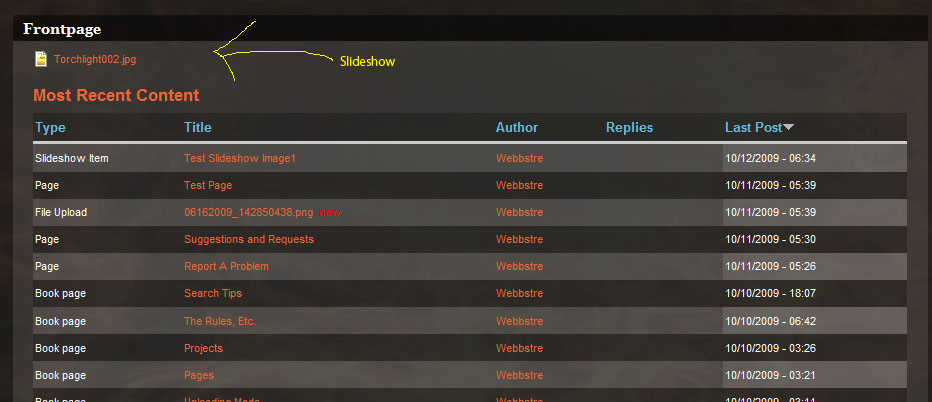

Ok, I followed all the directions as mentioned, but I am hitting a snag. Instead of showing the picture, I just get a link to the image. I attached a screenshot of where the block is. If I click the link it goes to the right image just fine though.

Is this a slideshow problem, an ImageField problem, or a drupal problem? My files are all actually loaded to a separate subdomain, and get uploaded just fine, and I use htaccess redirects to make sure any funkily directed links get redirected to the correct location (in other words, all images and files load fine everywhere else).

I missed a step. I added it as step number 12 in creating the view. Thanks for the feedback.

Very good on how to use views Slideshow.
Can I ask a little guide on how themed view slideshow?
Sorry my inglis.

It is not any different than themeing a view. Theme the row using this tutorial http://drupal.org/node/352970 I don't know about writing that far a tutorial.

I just put the view in via Mini-Panels.

Ok, I added in the step 12, now just a couple more questions:

1- Do I have to manually make sure any slideshow image is a specific size, or can it automatically create a thumbnail of sorts from an image?

2- How do I make it so if someone clicks the image it goes to a specific node for each image, rather than the node for the image?

Thanks for the help. This is one of the last steps I am taking before launching my drupal site :D

subscribe

Small update.... I followed step 12 and it shows up "correctly" (as in the image appears but it is a huge screenshot) within the preview, but on the actually page it is set to show up on it is the same as the image I attached before.

@webbstre Sorry I must have forgot to submit my response

1) You should use imagecache to automatically resize the image for your slideshow. You'll have to look up how to use imagecache and then use it instead of "image linked to node" option in step #12.

2) You can add a link cck field to your content type and then add it to your view above the image content type. In the link settings Check the exclude box. Under format choose "URL as plain text". I then theme the view and use that value to wrap my image in a url. Kind of convoluted, but works great for me. Learning how to theme a view is a good skill to learn.

Good luck.

Ok, I'm making progress.

1- I downloade Link Image Field for the link cck, I changed some of the steps in your directions by following the install directions and changing yours for it:

Install
-------

1) Copy the linkimagefield folder to the modules folder in your installation.

2) Enable the module using Administer -> Site building -> Modules
(/admin/build/modules).

3) Create a new linkimagefield through the CCK's interface. Visit Administer ->
Content management -> Content types (admin/content/types), then click
Manage fields on the type you want to add an image upload field. Select
"File" as the field type and "LinkImage" as the widget type to create a new
field.

4) To establish the proper display, make sure that the correct formatter is
selected. Visit Administer -> Content management -> Content types
(admin/content/types), then click Display fields on the type with the
Link Image Field. Make sure "LinkImage" is selected for Teaser and Body.

Does that last step conflict with your directions in a way that would stop it from working?

I also tried changing the minimum resolution and maximum resolution while I was editing the content type, because it said anything larger would be resized, but if I try to upload an image bigger (in the hopes it gets resized) it just gives me an error message that the file is too big.

2- Continuing my attempt to get the image resizing to work out, I put in ImageCache, and looked at the Presets, but am not sure exactly what to do. I tried a scale and crop, but maybe it didn't work well. What Preset are you using?

I'm soooooo close to getting this to work :P

Oh, I should mention I somehow got the uploaded image to show up properly this time. Still haven't managed to get the linking to work right yet, nor the resizing. I'm wondering if I missed something in the line in the link image instructions, where it said "3) Create a new linkimagefield through the CCK's interface." Is the CCK interface different from the rest of that instruction?

I have committed in dev these tutorials if you use the Advanced Help module. There are also screen shots.

@Webbstre You'll really need to look into how to theme views and an intro to imagecache. You can feel free to ask questions in those issue queues. Unfortunately I'm out of spare time to go through that portion of the design. Maybe someone else here can pick it up where you need help.

I think I figured it out. I have to Photoshop an image together for each headline anyways, so I'll just set the standard size and not worry about resizing. I got the linking images to work, so I think I'm set! Thanks again for all the help!

Glad it's working for you.

Automatically closed -- issue fixed for 2 weeks with no activity.
