Fix duplicate ID's in Views HTML structure [#1806288]

Posted by xjm

Problem/Motivation

Test if Views HTML meets WCAG 2.0 standards.

HTML Codesniffer by Squizz (http://squizlabs.github.com/HTML_CodeSniffer/) reports that the breadcrumbs ('Home > Administration > Structure > Views' does not have an accessible contrast ratio.

There are also duplicate IDs:

<div class="views-display-column third form-wrapper" id="edit-displays-settings-settings-content-tab-content-details-columns-third"><details class="views-display-column third form-wrapper" id="edit-displays-settings-settings-content-tab-content-details-columns-third"><summary role="button" aria-controls="edit-displays-settings-settings-content-tab-content-details-columns-third">Advanced</summary><div class="details-wrapper"><div  class="views-ui-display-tab-bucket contextual-filters">

i.e. id edit-displays-settings-settings-content-tab-content-details-columns-third is duplicated.

#6 also reports the following error, but others were unable to reproduce it:
As mentioned in #6, automated checking tool WAVE Toolbar has detected an error:

* drupal/admin/structure/views/view/archive
WAVE said: 'Uh oh, WAVE has detected 1 accesibility error', but I can't see where is it.
There's no red icon acording to the Index of WAVE icons.

Proposed resolution

Address each of the issues listed above separately.

Remaining tasks

Re-test the interface once the issues above have been fixed.

Original report by xjm

// Text of original report here.
(for legacy issues whose initial post was not the issue summary)

Part of meta issues #1805996: [META] Views in Drupal Core and #1802678: [META] Views: accessibility review.

Test whether Views' HTML structure meets WCAG 2.0.

Steps

Test this issue using 8.x HEAD:
git clone --recursive --branch 8.x http://git.drupal.org/project/drupal.git
Install the standard profile.
Test each screen of the Views UI, including: the administrative view listing, the view creation wizard, the advanced administrative interface, and modal dialogs.
Run an automated checking tool like the WAVE Toolbar. (More about automated checking)
Report any problems in this issue.

Reference: core accessibility gate.

Comment	File	Size	Author
#24	Before-with-duplicate-id.png	320.03 KB	mgifford
#24	After-without-duplicate-id.png	364.59 KB	mgifford
#20	1806288-20.patch	1.12 KB	mgifford
#17	Duplicate_IDs.png	158.76 KB	mgifford
#16	1806288-16.patch	1.11 KB	dead_arm
#6	waved-pages-of-views.tgz	715.71 KB	olveraricardo72

Comments

Comment #1

xjm

she/her

English

commented 8 October 2012 at 18:08

Project:	Drupal core	» VDC
Version:	8.x-dev	»
Component:	other	» Code

Comment #2

Anonymous (not verified) commented 17 October 2012 at 18:47

Assigned:

Unassigned

Assigning myself to this issue.

Comment #3

Anonymous (not verified) commented 20 October 2012 at 20:17

At present I don't have a a test environment in 8, but if anyone has a development box where I can login I'd be happy to check this against 8.

A better option may be to save the views section pages as html pages, so that we can run these through different automatic tools, and do some of the grunt work for final manual check. If we could post those html files, than people don't need to git 8. As well as solving the problem of accessing tools from the browser when logged in (if there is solution for that, feel free to let me know).

The latter option would allow more people to test it. We can update the HTML periodically, while track of progress in the cue.

Comment #4

xjm

she/her

English

commented 22 October 2012 at 20:42

Project:	VDC	» Drupal core
Version:		» 8.x-dev
Component:	Code	» views.module

Comment #4.0

xjm

she/her

English

commented 22 October 2012 at 20:42

Issue summary:

View changes

Updated issue summary.

Comment #5

xjm

she/her

English

commented 4 November 2012 at 01:01

Assigned:

» Unassigned

Adding task back into the queue so someone can work on it at the sprint tomorrow.

Comment #5.0

xjm

she/her

English

commented 4 November 2012 at 01:01

Issue summary:

View changes

Updated issue summary.

Comment #6

olveraricardo72 commented 9 November 2012 at 03:02

Status	File	Size
new	waved-pages-of-views.tgz	715.71 KB

* WAVE has detected no accesibility errors, but you must still check your page to ensure it is actually accessible.

* I'm not sure what's the "view creation wizard"

* drupal/admin/structure/views/view/archive
WAVE said: 'Uh oh, WAVE has detected 1 accesibility error', but I can't see where is it.
There's no red icon acording to the Index of WAVE icons.

* drupal/admin/structure/views/view/archive
With the Header overlay WAVE said: 'Uh oh, WAVE has detected 1 accesibility error', but I can't see where is it.
There's no red icon acording to the Index of WAVE icons.

Comment #7

mgifford

he/him

English

commented 9 November 2012 at 21:39

Sometimes you need to disable the CSS to see the errors. If you are using the WAVE Toolbar that makes it easier as it's right in the toolbar.

What's in the tarball?

Comment #8

olveraricardo72 commented 14 November 2012 at 15:31

In the zip I just saved the web pages i've tested for a more trained eye.

Comment #9

olveraricardo72 commented 14 November 2012 at 15:34

I disabled css but still WAVE says: "Uh oh, WAVE has detected 1 accessibility error", but the icons only show alerts and not errors.

Comment #10

mgifford

he/him

English

commented 14 November 2012 at 22:31

What's the URL you were looking at? With Views it could be something that's under something else.

Comment #11

olveraricardo72 commented 15 November 2012 at 00:25

The paths which report the problem are the ones mentioned in #6

admin/structure/views/view/archive
and
admin/structure/views/view/archive

Comment #11.0

olveraricardo72 commented 15 November 2012 at 00:25

Issue summary:

View changes

Updated issue summary.

Comment #12

tomaszjureczko commented 15 December 2012 at 15:27

Updated issue summary as part of London Drupal Sprint.

Comment #13

xjm

she/her

English

commented 15 December 2012 at 20:14

@tomaszjureczko, can you put my original step-by-step instructions under "Problem/Motivation"? The original post was only this section, and that information is important to have at the top of the issue. Then, put what you have under "Proposed resolution" under "Remaining tasks," because it is an explanation of what needs to be fixed next, not a solution. And then you can remove the "Original report" section since it will just be duplicate text. Thanks!

Comment #14

kim.pepper

English

🏄‍♂️🇦🇺Sydney, Australia

commented 11 January 2013 at 20:59

Issue tags:

+#pnx-sprint

Tagging

Comment #15

Sydney

commented 4 February 2013 at 00:09

I checked this out using Wave and couldn't see the issue.

I then put the code through aChecker.ca and it reports that there is a duplicate 'id' on the page which I thought could easily throw the Wave Toolbar, but the line it reports (105) is the <body> tag and has no id. Directly below it is the skip-link element, but the id is unique.

Ran the code through W3C's Unicorn validator and it reported no id errors at all.

Then, using the HTML Codesniffer by Squizz (great tool: http://squizlabs.github.com/HTML_CodeSniffer/) It reports that the breadcrumbs ('Home > Administration > Structure > Views' does not have an accessible contrast ratio.

AND (ready?) duplicate id's! Yippee!

<div class="views-display-column third form-wrapper" id="edit-displays-settings-settings-content-tab-content-details-columns-third"><details class="views-display-column third form-wrapper" id="edit-displays-settings-settings-content-tab-content-details-columns-third"><summary role="button" aria-controls="edit-displays-settings-settings-content-tab-content-details-columns-third">Advanced</summary><div class="details-wrapper"><div class="views-ui-display-tab-bucket contextual-filters">

id edit-displays-settings-settings-content-tab-content-details-columns-third is duplicated.

Thanks Squiz!

Comment #15.0

Sydney

commented 4 February 2013 at 00:09

Issue summary:

View changes

Added info from #6 to the summary and proposed next steps.

Comment #16

dead_arm

she/her

English

commented 25 May 2013 at 21:10

Status:

Active

» Needs review

Status	File	Size
new	1806288-16.patch	1.11 KB

The breadcrumb contrast is in the Seven theme, the blue link of (#0074bd) on the background of #branding (#e0e0d8) is original Seven theme styling, and wasn't accessible to begin with. There is already an open issue #740756: Ensuring Proper Color Contrast for Seven. The issue is present on all pages that use this pattern, i. e. admin/*.

The second part is that the third column was being wrapped twice. Patch attached with fix.

Comment #17

mgifford

he/him

English

commented 28 May 2013 at 21:47

Status	File	Size
new	Duplicate_IDs.png	158.76 KB

Ok, that patch fixes the duplicate ID's:
<details class="views-display-column third form-wrapper" id="edit-displays-settings-settings-content-tab-content-details-columns-third"><summary role="button" aria-controls="edit-displays-settings-settings-content-tab-content-details-columns-third">Advanced</summary><div class="details-wrapper"><div class="views-ui-display-tab-bucket contextual-filters">

But would be good that you are also excluding this:

-.views-display-columns details {
-  border: none;
-  margin: 0;
-  padding: 0;
-}

I'm guessing since that class got removed, made sense to remove the CSS. I'm just not sure it's not used elsewhere so wanted to make sure.

Looks like this is moving ahead though.

Duplicate IDs fixed

Comment #18

xjm

she/her

English

commented 9 June 2013 at 16:55

Issue tags:

-Novice, -Accessibility, -Needs manual testing, -VDC, -#pnx-sprint

#16: 1806288-16.patch queued for re-testing.

Comment #18.0

xjm

she/her

English

commented 9 June 2013 at 16:55

Issue summary:

View changes

Updated Issue Summary from comments in #15

Comment #19

9 June 2013 at 16:59

Status:	Needs review	» Needs work
Issue tags:		+Novice, +Accessibility, +Needs manual testing, +VDC, +#pnx-sprint

The last submitted patch, 1806288-16.patch, failed testing.

Comment #20

mgifford

he/him

English

commented 11 June 2013 at 14:34

Status:

Needs work

» Needs review

Status	File	Size
new	1806288-20.patch	1.12 KB

Did this file just get renamed to views_ui.admin.css?
Output: [error: core/modules/views_ui/css/views-admin.css: No such file or directory].

I'm going to assume so.

Comment #21

11 June 2013 at 16:49

Status:	Needs review	» Needs work
Issue tags:	-Novice, -Accessibility, -Needs manual testing, -VDC, -#pnx-sprint

The last submitted patch, 1806288-20.patch, failed testing.

Comment #22

mgifford

he/him

English

commented 8 July 2013 at 09:29

Status:	Needs work	» Needs review
Issue tags:		+Novice, +Accessibility, +Needs manual testing, +VDC, +#pnx-sprint

#20: 1806288-20.patch queued for re-testing.

Comment #23

dawehner

German

commented 8 July 2013 at 18:57

Issue tags:

+Needs screenshots

It would be great to have a before and after screenshot in the issue summary.

Comment #24

mgifford

he/him

English

commented 9 July 2013 at 02:28

Status	File	Size
new	After-without-duplicate-id.png	364.59 KB
new	Before-with-duplicate-id.png	320.03 KB

This is a pretty simple patch, but here's the before/after from admin/structure/views/view/archive using simplytest.me

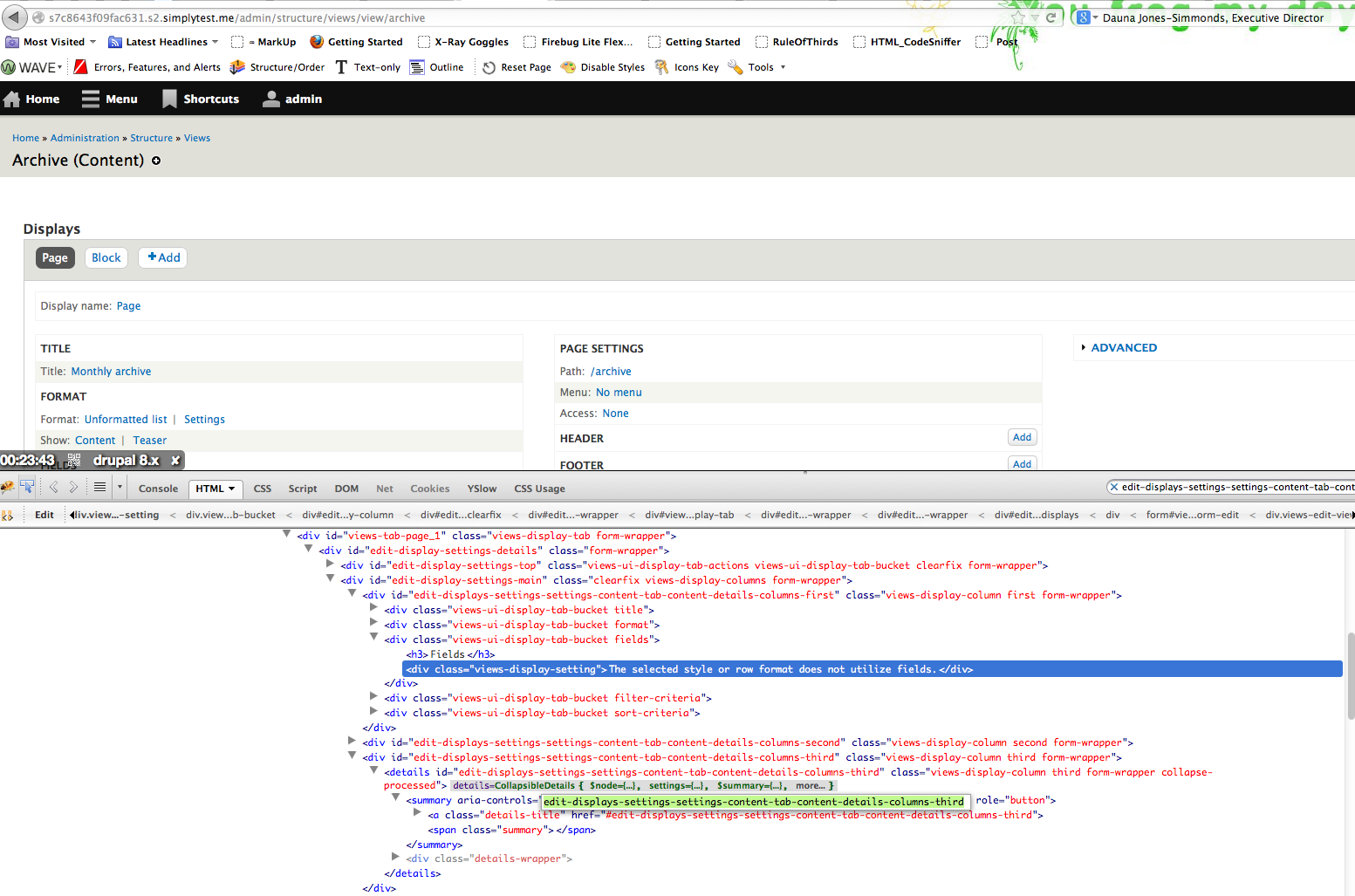

Before
Before with duplicate id

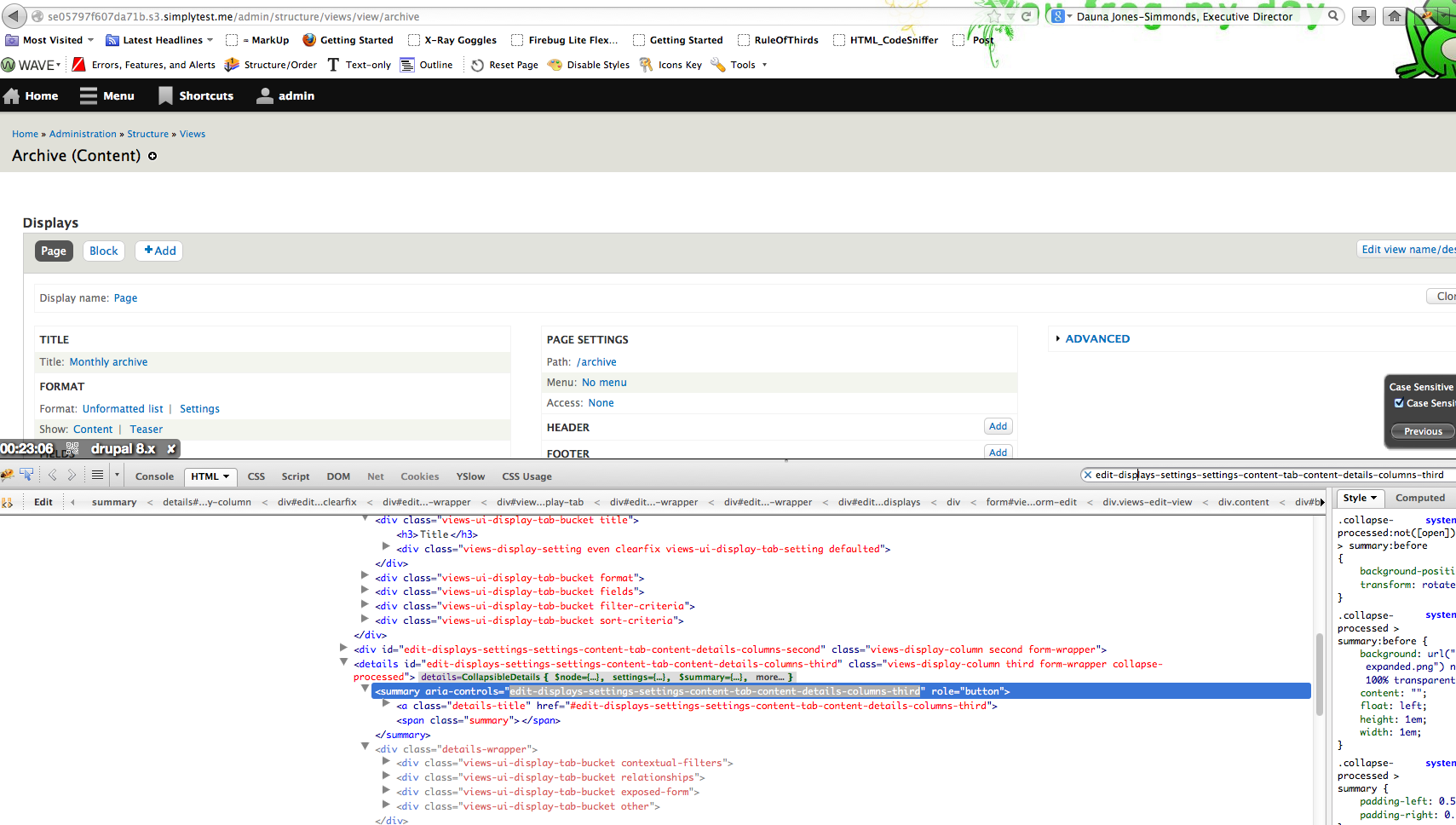

After
After without duplicate ID

Comment #25

mgifford

he/him

English

commented 9 July 2013 at 02:29

This patch so far only addresses the duplicate ID's though. It doesn't touch on an evaluation of Views semantics unfortunately. Just one obvious failing.

Comment #26

dawehner

German

commented 9 July 2013 at 07:49

Status:

Needs review

» Reviewed & tested by the community

Thank you

Comment #27

alexpott

he/they

English

🇪🇺🌍

commented 17 July 2013 at 00:43

Status:

Reviewed & tested by the community

» Needs review

So the patch here is not doing what the issue title says... "Test whether Views' HTML structure meets WCAG 2.0"

As this is used for the commit message I can't commit this until you suggest a message that makes sense.

Setting back to needs review for this to take place :)

Comment #28

mgifford

he/him

English

commented 17 July 2013 at 02:04

Title:	Test whether Views' HTML structure meets WCAG 2.0	» Fix duplicate ID's in Views HTML structure
Status:	Needs review	» Reviewed & tested by the community

Good point. Thanks Alex. This addresses that point.
