Problem/Motivation

We aim to tweaks the styling of the navigation listings to bring them more inline with the new Seven visual language.

We developed Proposal: A Style Guide for Seven. This issue aims to introduce the proposed styling for pagination in core.

To quote the rationale provided:

The Nav List is used on “hub” pages to provide an on-page navigation menu with help text. This component is not greatly changed from D7, with only minor typographic finessing and a rounding of the “fancy bullet” used to mark the list items, in keeping with the friendliness of the brand.

Proposed resolution

In #1945552: Add Nav List component we laid the ground work for this change.


Remaining tasks

  • Make a patch

User interface changes

This is a style only change,

API changes

No API Changes

Files:
CommentFileSizeAuthor
#42 rtl-admin-config-before.png289.01 KBrteijeiro
#42 rtl-admin-config-after.jpeg257.52 KBrteijeiro
#42 rtl-admin-reports-before.png90.81 KBrteijeiro
#42 rtl-admin-reports-after.png93.78 KBrteijeiro
#41 ie8-nosvg.png13.84 KBechoz
#38 2016875-nav-list-38.patch5.87 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 58,785 pass(es).
[ View ]
#38 nav-list-svg-icon.png33.06 KBechoz
#32 no-desc-no-indent.png18.02 KBechoz
#31 2016875-nav-list-31.patch4.66 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 56,992 pass(es).
[ View ]
#28 2016875-nav-list-28.patch4.67 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 56,506 pass(es).
[ View ]
#28 admin-config-ltr.png32.19 KBechoz
#28 admin-config-rtl.png32.31 KBechoz
#27 2016875-nav-list-27.patch3.72 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 56,992 pass(es).
[ View ]
#24 s01-nopatcch-admin_config.png73.7 KBYesCT
#24 s01-patch-admin_config.png76.41 KBYesCT
#24 s01-patch-rtl-admin_config.png78.57 KBYesCT
#24 s01-nopatch-rtl-admin_config.png76.08 KBYesCT
#24 s02-nopatch-admin_reports.png34.78 KBYesCT
#24 s02-patch-admin_reports.png36.25 KBYesCT
#21 2016875-nav-list-21.patch3.62 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 56,417 pass(es).
[ View ]
#18 2016875-nav-list-13.patch3.62 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 56,748 pass(es).
[ View ]
#17 2016875-nav-list-17.patch9.74 KBrteijeiro
PASSED: [[SimpleTest]]: [MySQL] 56,392 pass(es).
[ View ]
#15 2016875-nav-list-14.patch9.74 KBrteijeiro
PASSED: [[SimpleTest]]: [MySQL] 56,390 pass(es).
[ View ]
#13 2016875-nav-list-13.patch3.62 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 56,376 pass(es).
[ View ]
#11 2016875-nav-list-11.patch3.97 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 58,376 pass(es).
[ View ]
#11 nav-list-config-rtl.png28.1 KBechoz
#8 2016875-nav-list-8.patch3.85 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 58,142 pass(es).
[ View ]
#8 nav-list-config.png29.02 KBechoz
#8 nav-list-reports.png18.27 KBechoz
#6 2016875-nav-list-6.patch3.69 KBechoz
PASSED: [[SimpleTest]]: [MySQL] 58,192 pass(es).
[ View ]
#5 2016875-nav-list-5.patch3.98 KBLewisNyman
PASSED: [[SimpleTest]]: [MySQL] 57,956 pass(es).
[ View ]
#1 new-admin-list-style.patch3.68 KBLewisNyman
PASSED: [[SimpleTest]]: [MySQL] 57,723 pass(es).
[ View ]
18.nav-list.png18.92 KBLewisNyman

Comments

Status:Active» Needs review
StatusFileSize
new3.68 KB
PASSED: [[SimpleTest]]: [MySQL] 57,723 pass(es).
[ View ]

Here's the initial patch

Status:Needs review» Needs work
Issue tags:-Usability, -styleguide

The last submitted patch, new-admin-list-style.patch, failed testing.

Status:Needs work» Needs review
Issue tags:+Usability, +styleguide

#1: new-admin-list-style.patch queued for re-testing.

Status:Needs review» Needs work

Lookin' good.
* The .png is misnamed in the rtl file ("list-icon-rtl.png" rather than "nav-list-icon-rtl.png")
* git apply reports trailing whitespace on the pngs.

Status:Needs work» Needs review
StatusFileSize
new3.98 KB
PASSED: [[SimpleTest]]: [MySQL] 57,956 pass(es).
[ View ]

Thanks, I changed the class in the RTL file. Not sure about the whitespace in the png. I ran them through imageoptim....

StatusFileSize
new3.69 KB
PASSED: [[SimpleTest]]: [MySQL] 58,192 pass(es).
[ View ]

#5 patch changed the wrong unrelated img ruleset. Here is that correction. Patch has the same git warning, but applies and stages fine. Implementation looks fine.
-------

2016875-nav-list-6.patch:26: trailing whitespace.
?PNG
2016875-nav-list-6.patch:35: trailing whitespace.
?PNG
warning: 2 lines add whitespace errors.

Can we fix these whitespace errors?

The only thing I am concerned about is the fact that it vertically centers to the title. That looks a bit strange, but it looks totally fine without descriptions. Given that many content facing occasions there won't be descriptions. I am fine with leaving that, also with typographic changes it will look better.

StatusFileSize
new18.27 KB
new29.02 KB
new3.85 KB
PASSED: [[SimpleTest]]: [MySQL] 58,142 pass(es).
[ View ]

@Bojhan, not sure what you mean about "vertically centers to the title". With desciptions, I would think this is desired, same as previously.

The images were not transparent, they were on white. Since they are on a non white background on the config page, I've re-done the images from seventy-eight's PSD (plus optimized). I was hoping the whitespace warnings would go away, but they are the same. Note they are warnings not errors.

Only change in this patch is transparent images.


The icon looks good aligned with the title, @Bojhan if you want to we could add a variant class if a description exists?

Middle alignment of icon and title, with or without a description is the way to go. I don't think a variant class is needed.

StatusFileSize
new28.1 KB
new3.97 KB
PASSED: [[SimpleTest]]: [MySQL] 58,376 pass(es).
[ View ]

Adjustment for previously untested RTL


@echoz Nice work!

StatusFileSize
new3.62 KB
PASSED: [[SimpleTest]]: [MySQL] 56,376 pass(es).
[ View ]

StatusFileSize
new9.74 KB
PASSED: [[SimpleTest]]: [MySQL] 56,390 pass(es).
[ View ]

The patch :(

The last patch seems a little bit overreaching, should we make the changes here or as part of #2015789: Remove language_css_alter() (RTL stylesheets) in favor of HTML 'dir' attribute ?

StatusFileSize
new9.74 KB
PASSED: [[SimpleTest]]: [MySQL] 56,392 pass(es).
[ View ]

You are right @Lewis, I have included some crap from other patch, sorry :(

This is the right patch ;)

StatusFileSize
new3.62 KB
PASSED: [[SimpleTest]]: [MySQL] 56,748 pass(es).
[ View ]

Hold on. First of all, the patches in #15 or #17 (which are identical, btw) leave out the new icons. They are changing the rtl attribute selector in seven's style.css to have quotes. But #2030925: quote rtl attribute selector has not landed yet. Whichever patch gets committed first (2030925 or this one), the other will need to be re-rolled. The patch that will work right now is #13, which I am resubmitting here. If #2030925: quote rtl attribute selector gets committed before it, I will re-roll this with changing I think only one needed "rtl".

Status:Needs review» Reviewed & tested by the community

I agree with @echoz. Sorry for the noise :(

Patch applies well and seems to work well.

Issue tags:+RTBC July 1

This issue was RTBC and passing tests on July 1, the beginning of API freeze.

Status:Reviewed & tested by the community» Needs review
StatusFileSize
new3.62 KB
PASSED: [[SimpleTest]]: [MySQL] 56,417 pass(es).
[ View ]

Status:Needs review» Needs work
Issue tags:-Usability, -styleguide, -RTBC July 1

The last submitted patch, 2016875-nav-list-21.patch, failed testing.

Status:Needs work» Needs review
Issue tags:+Usability, +styleguide, +RTBC July 1

#21: 2016875-nav-list-21.patch queued for re-testing.

rtl is different than in #11.
is that because the fix for rtl will be in another issue?

admin/config

no patch


no patch - rtl

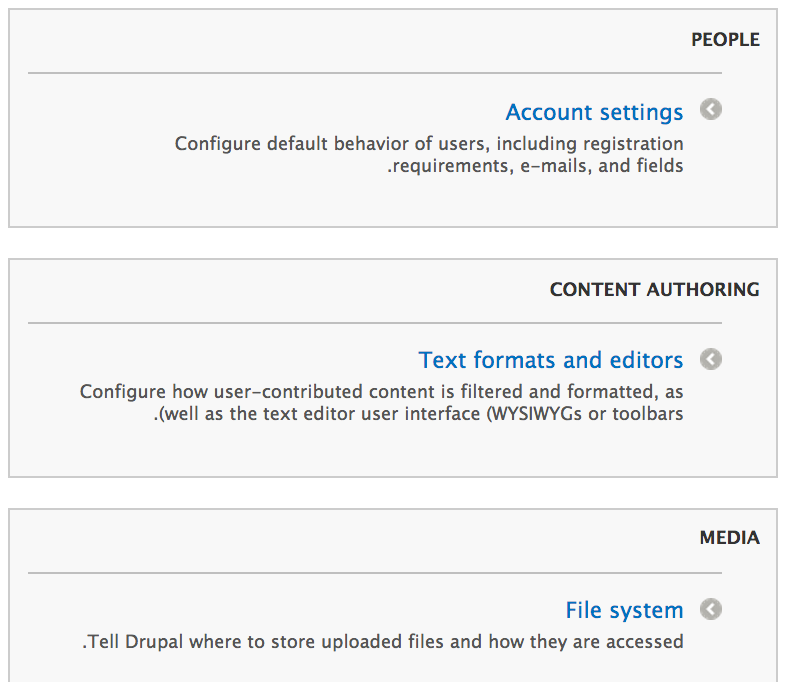

patch


patch - rtl


admin/reports

no patch


patch


Status:Needs review» Needs work
Issue tags:+CSS, +css-novice

Yep, we could of easily lost some RTL styling in the past week.

Issue tags:+frontend, +D8MI

tagging for d8mi frontend people.

Status:Needs work» Needs review
StatusFileSize
new3.72 KB
PASSED: [[SimpleTest]]: [MySQL] 56,992 pass(es).
[ View ]

It was a specificity issue that my browser cache fooled me into thinking I had fixed.

StatusFileSize
new32.31 KB
new32.19 KB
new4.67 KB
PASSED: [[SimpleTest]]: [MySQL] 56,506 pass(es).
[ View ]

The column css was screwed up (previous to this issue) and issue only showed up on RTL. Fixed.

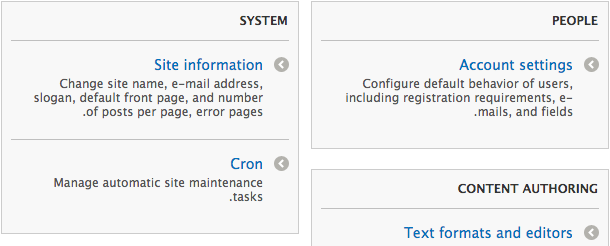

patched LTR


patched RTL


Status:Needs review» Needs work
Issue tags:-CSS, -Usability, -styleguide, -frontend, -D8MI, -css-novice, -RTBC July 1

The last submitted patch, 2016875-nav-list-28.patch, failed testing.

Status:Needs work» Needs review
Issue tags:+CSS, +Usability, +styleguide, +frontend, +D8MI, +css-novice, +RTBC July 1

#28: 2016875-nav-list-28.patch queued for re-testing.

StatusFileSize
new4.66 KB
PASSED: [[SimpleTest]]: [MySQL] 56,992 pass(es).
[ View ]

Removed indentatation on "Hide description" display, as per #2037525: 'Hide description' layout bug

StatusFileSize
new18.02 KB

…and a screenshot


Status:Needs review» Needs work
Issue tags:-CSS, -Usability, -styleguide, -frontend, -D8MI, -css-novice, -RTBC July 1

The last submitted patch, 2016875-nav-list-31.patch, failed testing.

Status:Needs work» Needs review
Issue tags:+CSS, +Usability, +styleguide, +frontend, +D8MI, +css-novice, +RTBC July 1

#31: 2016875-nav-list-31.patch queued for re-testing.

This still applies and should be easy to review (admin/config and admin/reports), can we move this along?

I swear I think someone at NYCCamp made all the before and after screenshots and double checked this...

This smells like RTBC

StatusFileSize
new33.06 KB
new5.87 KB
PASSED: [[SimpleTest]]: [MySQL] 58,785 pass(es).
[ View ]

I remember somewhere it was said we should leverage the icons from ry5n's Libricons #2032773: Use Libricons (icon font) in Seven, consider using it more broadly in core for the icons used here. In #1963886: Use HiDPI icons in the toolbar only the icons used in toolbar were added in misc/icons, which included chevron-disc up + down but not left + right, which are part of Libricons and the ones used here in the admin nav lists.

This new patch is the same as #31 patch, which still applys and was ready for rtbc, plus uses the svg (w/ Modernizer png fallback) from misc/icons.

It adds these icons, in the right color, at misc/icons:

chevron-disc-left.svg
chevron-disc-right.svg

It does not add the pngs (created from seventy-eight's PSDs) that had been used up to the #31 patch. If we decide not to use the svg / png from misc/icons, we can use the #31 patch.

Using svg icons from misc/icons


tagging

Patch applies well (except for the errors regarding existing icon files) and looks really good.

Maybe it's a RTBC?

StatusFileSize
new13.84 KB

The git warnings (not errors) have always been there for the pngs.

I wanted to hear if nav-list is a candidate for switching to use svg icons, which I assume is true and what this last patch #38 does. Here's a screenshot showing that ie8 gets the Modernizer png fallback.


RTL should be tested since this change (admin/config and admin/reports).

Status:Needs review» Reviewed & tested by the community
StatusFileSize
new93.78 KB
new90.81 KB
new257.52 KB
new289.01 KB

It looks ok for me. Tested for RTL and it seems to fix a bug in admin/config page. Take a look at the screenshots:

admin/config BEFORE:


admin/config AFTER:

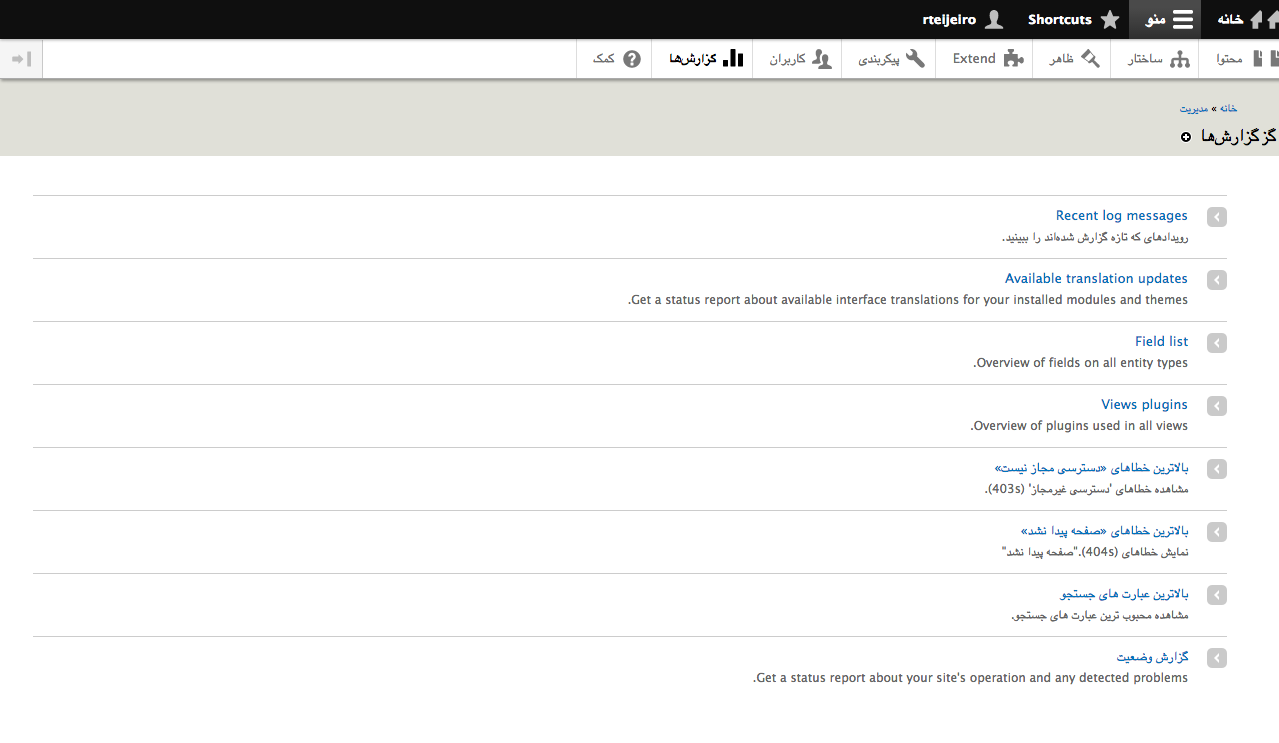

admin/reports BEFORE:


admin/reports AFTER:


Well done echoz!!

Maybe RTBC?

Thanks for the RTL testing!
Correct, I discovered and fixed that column bug in #28 that existed previous to this issue but only showed up on RTL.

Just tested it again with LTR and RTL.
Still works - RTCB
No reroll needed.

Yes, this is ready to get in!

Status:Reviewed & tested by the community» Fixed

That looks much better!

Committed and pushed to 8.x. Thanks!
