We are using the BeautyTips module to display the accessibility issues, and noticed that if criterion of multiple severe or suggested rules are met for a single entity, there does not seem to be an effective way to show them.

For example, if an image wrapped in a link is missing its alt attribute, I'll get the message that "An image within a link cannot have an empty 'alt' attribute if there is no other text within the link". However if I move the mouse over the image a few more times, the message will change and it will say "Image elements must have an 'alt' attribute". This seems to show up sometimes when viewing a node, but happens even more frequently when editing a node and using the accessibility_wysiwyg module (we're using the CKEditor module, not WYSIWYG).

Obviously both of these rules apply in the situation where an image with no alt tag is wrapped in an <a> tag, Probably the better approach would to be to loop through all the offending rules when there is more than one, and display them in an unordered list. I'd also recommend sorting them based on severity of test (with severe at the top and suggestions at the bottom), and place in text next to each item the severity level to avoid the color blindness issues. So something like this within the BeautyTip:

<ul>
<li><span>Severe</span>: An image within a link cannot have an empty 'alt' attribute if there is no other text within the link<li>
<li><span>Severe</span>: Image elements must have an 'alt' attribute</li>
</ul>

(Added a <span> tag in case a themer wants to style the severity level.) Thanks!

CommentFileSizeAuthor
#17 modalckeditor.png105.61 KBAnonymous (not verified)
#15 2013-08-20_15-15-14.jpg209.85 KBbtopro
#13 accessibility_console_2054471_13.png97.33 KBAnonymous (not verified)
#13 accessibility_console_2054471_15.patch19.29 KBAnonymous (not verified)
#10 accessibility-mockup-2054471-1.png110.42 KBAnonymous (not verified)

Comments

Anonymous’s picture

Anonymous (not verified) commented

Please check the latest version, we have ditched beautytips for this reason and a few others (positioning issues, wysiwyg compatability). I agree, we should merge them together and will work on a commit for that this week.

sgdev’s picture

sgdev commented

Ah okay, thanks for letting me know. I haven't checked out the new version yet, so is it just a list at the bottom of the page? We showed the earlier version at a demo this past week, and seemed like the client was really intrigued by the BeautyTips (or at least the idea of placing messages close to the offending item). It was a bit of a "wow, I haven't seen that before" moment.

Anonymous’s picture

Anonymous (not verified) commented

The update uses it's own popover, but you could override the default error handling by overloading several Drupal.accessibility methods.

sgdev’s picture

sgdev commented

Ok great, thanks. We'll certainly take a look and I'll let you know if we have any further questions!

Anonymous’s picture

Anonymous (not verified) commented

I was just playing with solving this, I think the problem is that just merging content together within the popover might be one solution (maybe change the title to say "there are x errors:" However, this will cause issues if there's over three or four errors, as they will make the popover really big.

One solution might be to change from a popover to a modal box. I like this solution from a pure laziness perspective: popovers are hard, especially when in a WYSIWYG editor. However, they make the UI difficult as the user would see the error, click, then get a message that might cover up the error on the page.

Another solution would be to place an indicator over the element, or provide some sort of branching/pagination in the popover itself. That would be a difficult UI challenge as pagers within popovers is not a common thing.

Thoughts?

Anonymous’s picture

Anonymous (not verified) commented

I've opened a discussion on g.d.o: https://groups.drupal.org/node/310248

jessebeach’s picture

jessebeach commented

What about a console-like region fixed to the bottom of the screen? Ditch positioning all together and just make sure that the highlighted element is scrolled into view/ demarked visually / indicated semantically with an appropriate ARIA/focus state.

We could make the console/messages region an ARIA-live region as well.

Anonymous’s picture

Anonymous (not verified) commented

I like the idea of a fixed content area, especially if it's the entire width of the page it would solve other problems like mobile interfaces, plus could scroll to accommodate any number of simultaneous issues with the same element. I'll put a few mockups together.

btopro’s picture

btopro commented

I think that'd be good too so you could do a reverse look up of sorts. I love the outline and hover concept but right now I'm having all kind of issues w/ hover (+ as you mention this doesn't work on mobile then I'd assume). An area that's static could contain all of the items potentially that were found as errors / warnings in the document. From there you could click an item based on the order it was located and jump to that part of the wysiwyg based on the anchor.

Even if not doing that I think a static area would be better purely from a stand point of reporting any accessibility message.

Anonymous’s picture

Anonymous (not verified) commented
StatusFileSize
new accessibility-mockup-2054471-1.png110.42 KB

Here's a start. This console would work like this:

  1. The tab on the bottom of the page would open/close the console.
  2. Tests would be grouped by severity level. It still remains to be seen how we deal with something like three different images missing alt. Maybe indicate the number of elements that failed a test, then highlight all of them when clicked.
  3. When a link is clicked in the console, the user is jumped to an anchor that is inserted right before the next element with the error.

The only problem with this console is that it won't work very well with WYSIWYG editors. We could just use the default modal box API editors provide.

btopro’s picture

btopro commented

Looks solid. Are items anchored in a unique way or just based on type of error detected? Either way I think this is a much better approach to handling the issue.

Anonymous’s picture

Anonymous (not verified) commented

The anchors should be on an item-by-item basis, I'm working through those kinks right now since we need to give some sort of internal test navigation to find each one of them.

Anonymous’s picture

Anonymous (not verified) commented
StatusFileSize
new accessibility_console_2054471_15.patch19.29 KB
new accessibility_console_2054471_13.png97.33 KB

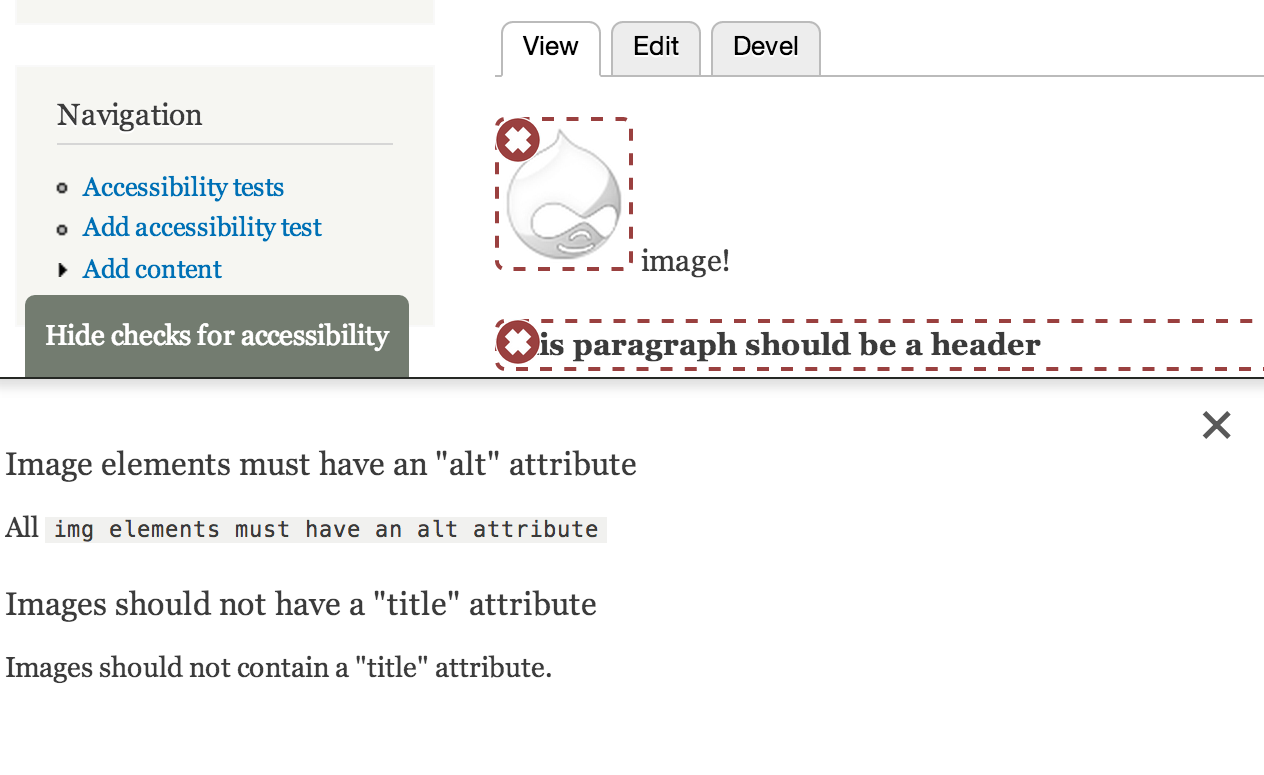

Here's the first pass at this, along with a screen shot. I also updated the accessibility content module in this patch so we could have a working prototype. Things that still need resolution are:

  1. Highlighting the currently viewed test.
  2. Providing a way to browse the console by test instead of clicking on an element to view the errors.
  3. Clean up API a bit
Anonymous’s picture

Anonymous (not verified) commented

Because of all the changes, I'm making a separate feature branch to track this. It's 7.x-1.x-console

btopro’s picture

btopro commented
Status: Active » Needs work
StatusFileSize
new 2013-08-20_15-15-14.jpg209.85 KB

branch as it exists is doing funky things w/ content in editor (see screenshot). The bottom panel w/ feedback I think is clean and a much better way of handling these messages but its currently doing odd things to the editor itself.

Anonymous’s picture

Anonymous (not verified) commented

I'm currently reworking the handing to be more in control of the plugin itself, I don't think the console is a good fit for WYSIWYG editors and should use a UI consistent with whichever editing environment the user is in.

Anonymous’s picture

Anonymous (not verified) commented
StatusFileSize
new modalckeditor.png105.61 KB

The latest commit to the 7.x-1.x-console branch includes a plugin for CKEditor4 that uses it's native modal box API, I'm working on using this as a basis for the other editors.

sgdev’s picture

sgdev commented

Awesome, kevee, that's a great idea. I think that will be a much cleaner implementation.

One comment that's related to this issue. If I use the Accessibility icon on CKEditor 4, all items with issues are tagged with the class of class="accessibility-popover-active". I understand the need to use this, however if I perform the following steps it causes a problem:

  1. Click "Check content for accessibility" icon on CKEditor toolbar
  2. Click red dotted line on a tag which has an issue, which causes the accessibility popup to be displayed
  3. Close the accessibility popup
  4. Click "Source" icon on CKEditor toolbar, and see that class="accessibility-popover-active" has been added to the problem tag.
  5. Click "Source" icon again to return to normal display mode. The red dotted line on tag is no longer displayed.
  6. Save the post.
  7. Edit post, click "Source" icon, and the class="accessibility-popover-active" has been saved with the HTML.

So, after toggling back-and-forth, the CSS class has been saved with the post. The accessibility popover should merely be a display tool, and should not be added within the HTML content.

Anonymous’s picture

Anonymous (not verified) commented
Status: Needs work » Closed (fixed)

I'm closing since the console is now in both 7 and 8 branches, and the ckeditor issue is opened here #2085847: Accessibility Demo shows bug
